Firetech Guardian Junior Tail Lights

$1,109.99

Shipping calculated at checkout.

Housing

Chrome Black

Lights

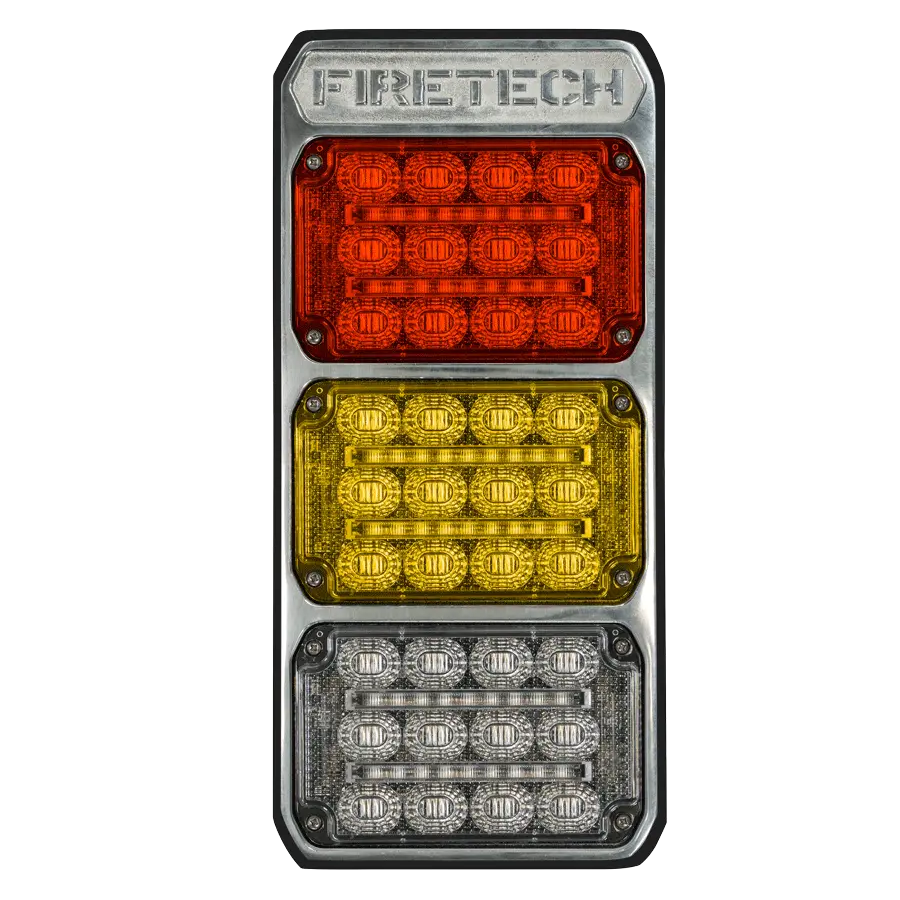

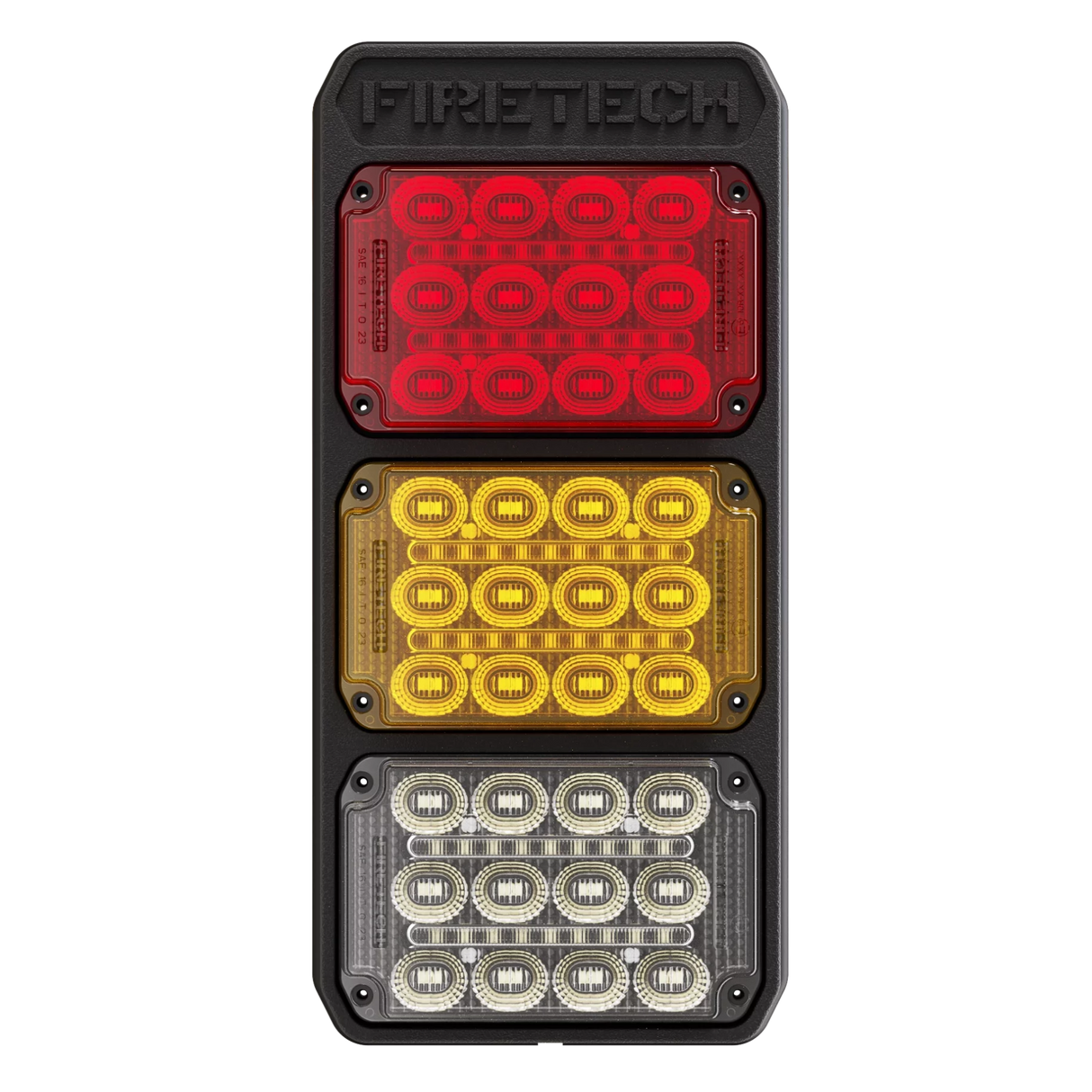

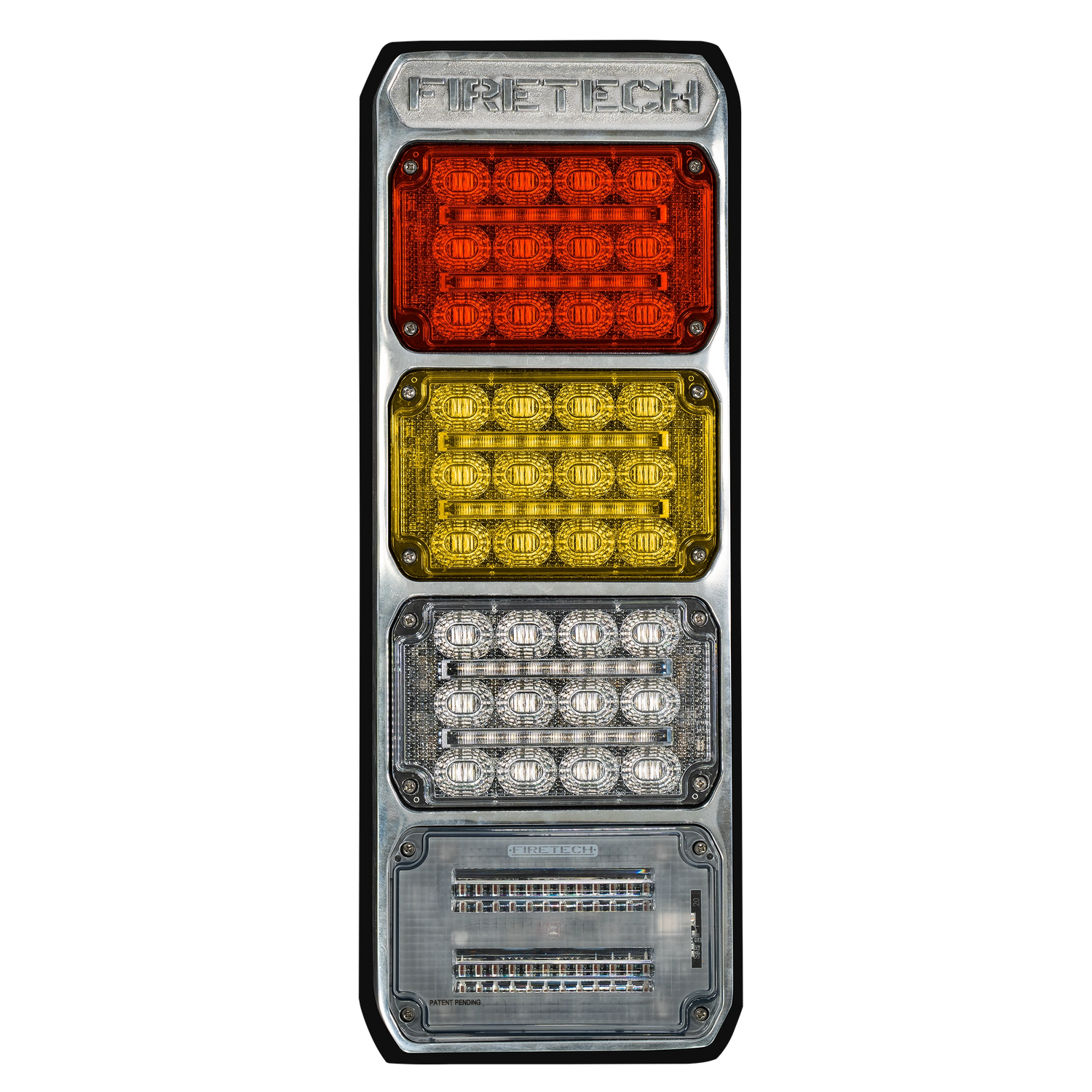

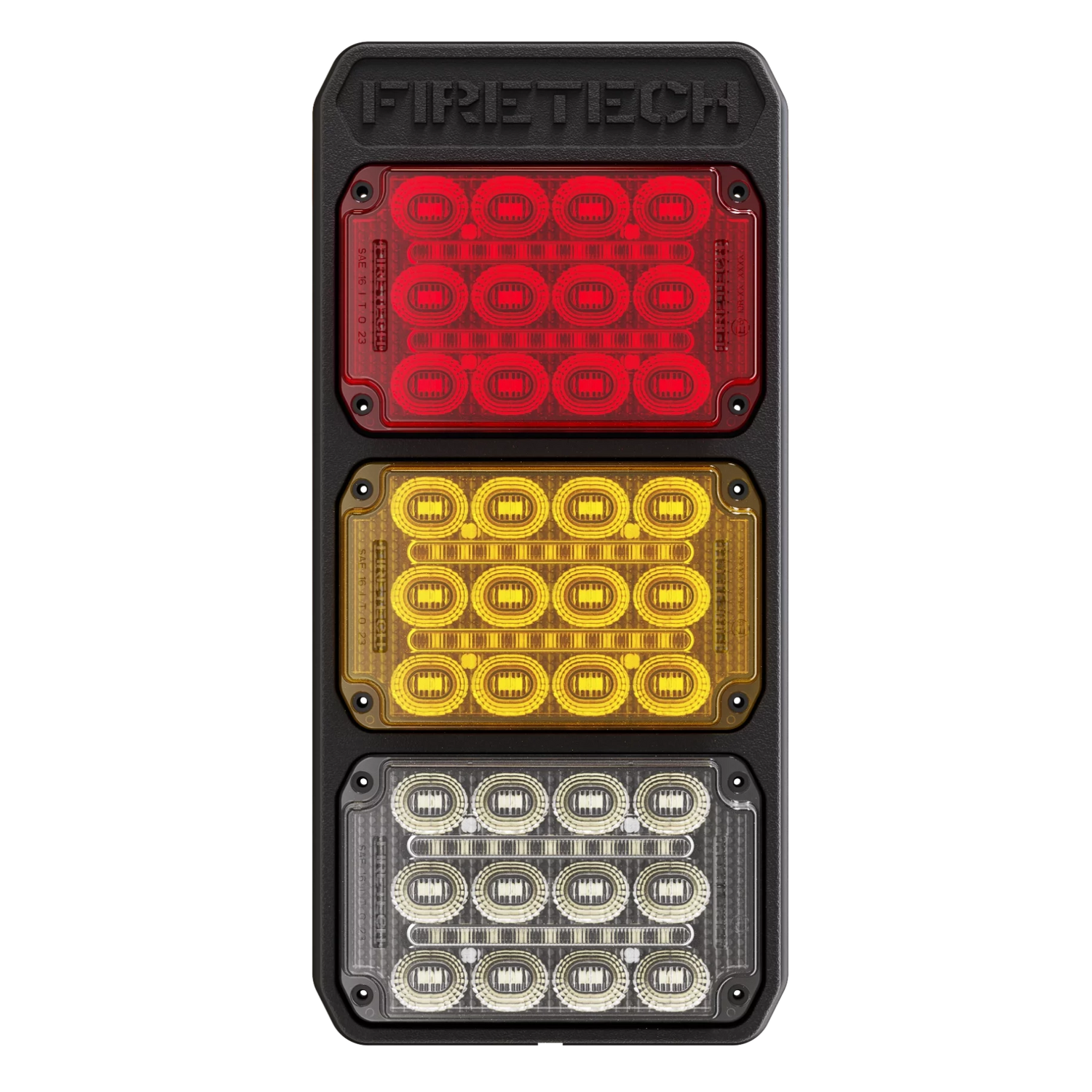

(2) Stop/Tail Lights (2) Turn Lights and (2) Backup Lights Includes 6 Bezels Complete Set of (2) Triple Tail Light Includes (2) Stop/Tail (2) Turn and (2) Backup Light Complete Set of (2) Quad Tail Light Includes (2) Stop/Tail (2) Turn and (2) Backup Light

Product variants

Usually ships in 5-6 weeks

What's In The Box

• (1) Firetech HVC Guardian Junior Warning Light
• Mounting Bezel

Tech Specs

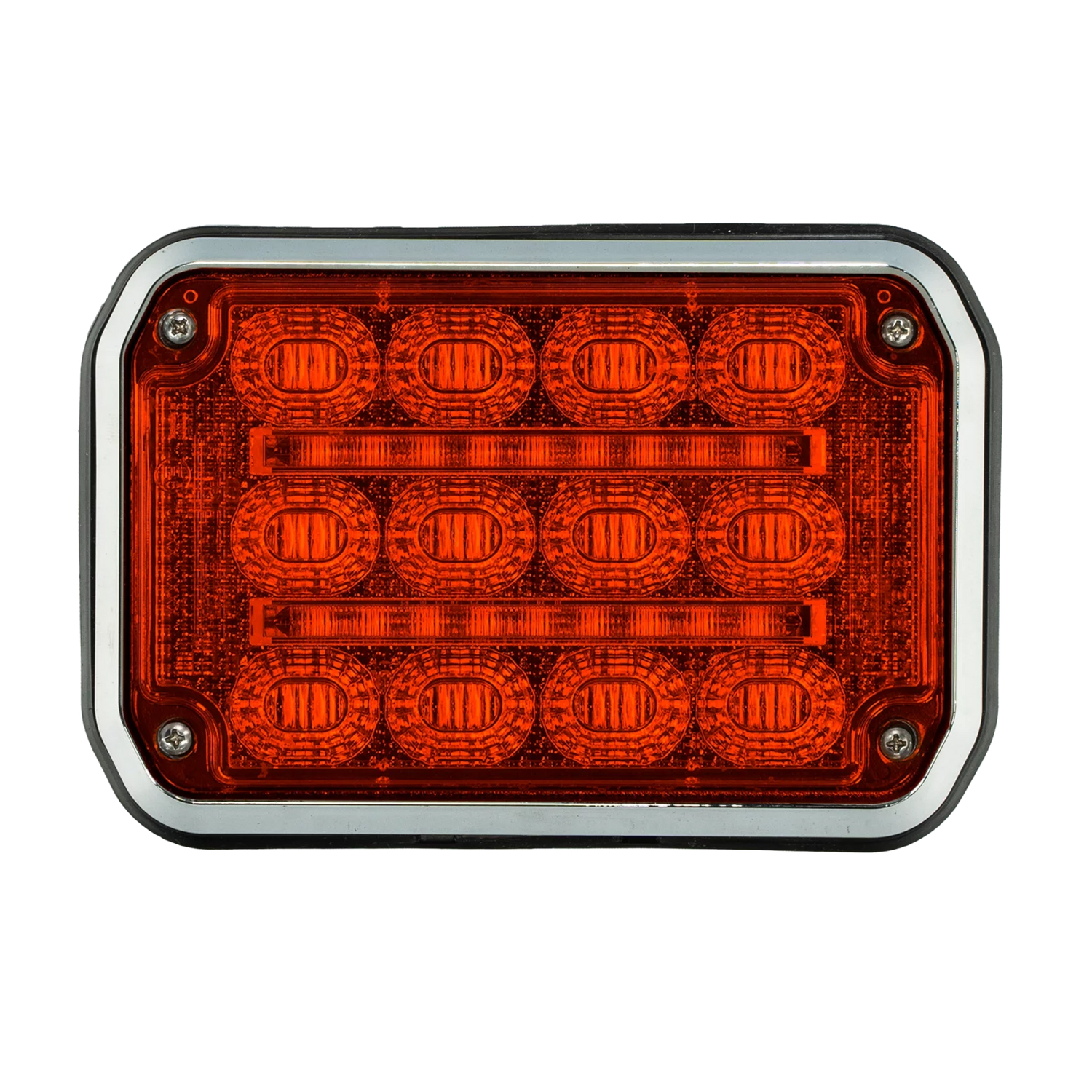

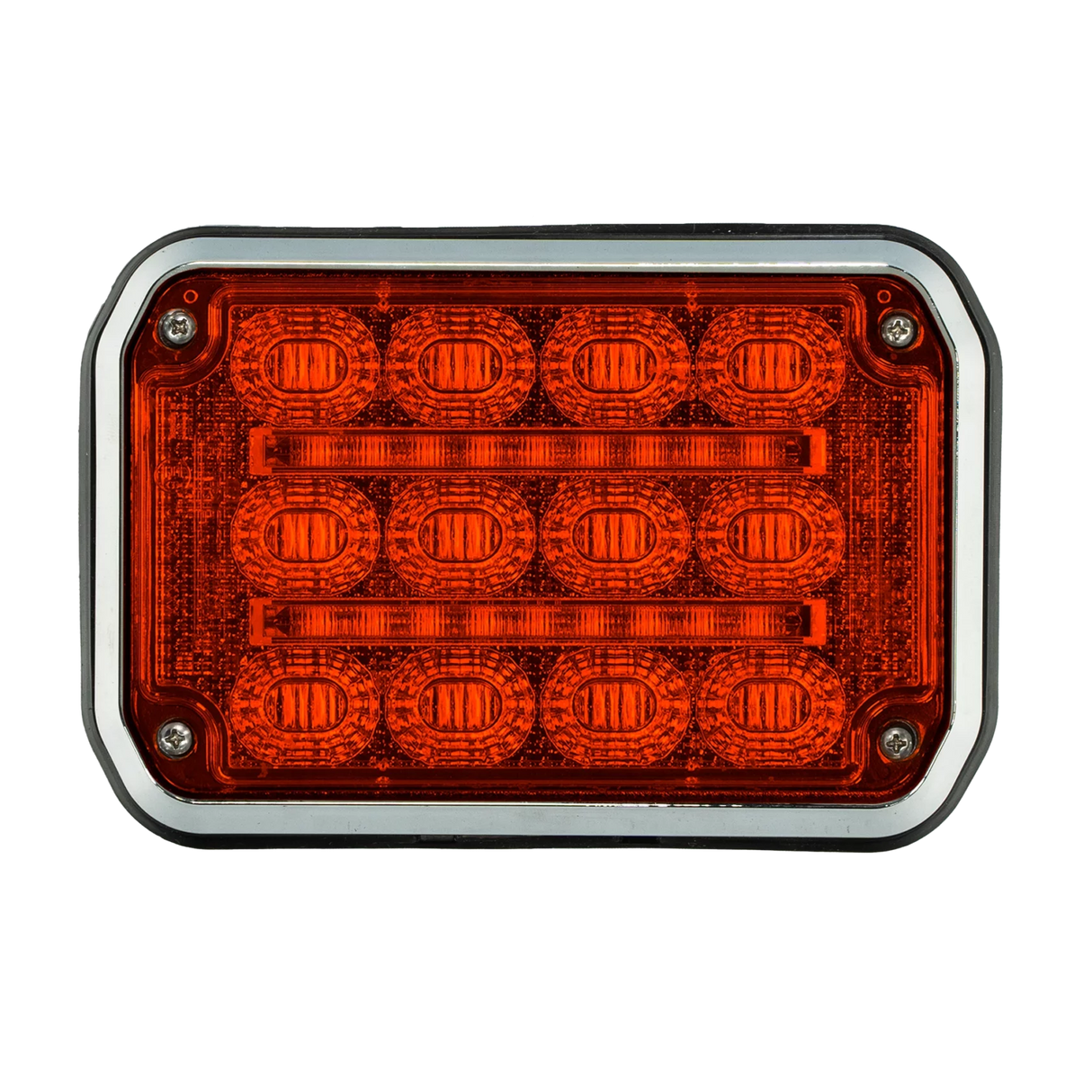

Stop/Tail Light

• Dimensions: 6.52” x 0.85” x 4.09”
• Avg. Wattage: 2.88W
• Max. Wattage: 5.76W
• Avg. Amperage: 0.24A @ 12V DC; 0.12A @ 24V DC
• Max. Amperage: 0.48A @ 12V DC; 0.24A @ 24V DC
• Input Voltage DC: 10-32V DC
• Certifications: FMVSS-108; SAE J2040; SAE J585; IP67 & IP69K

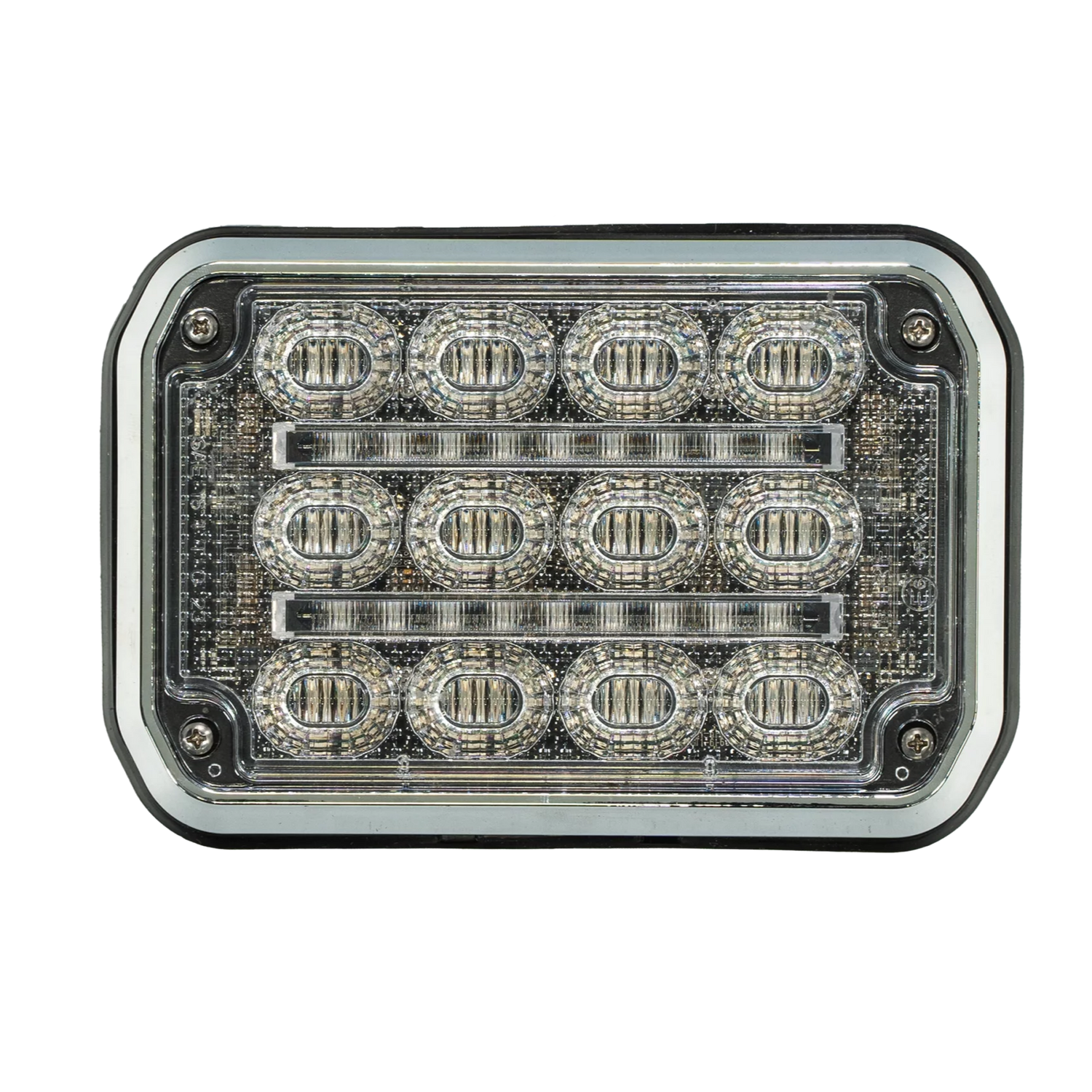

Backup Light

• Dimensions: 6.52” x 0.85” x 4.09”
• Max. Wattage: 2.88W
• Max. Amperage: 0.24A @ 12V DC; 0.12A @ 24V DC
• Input Voltage DC: 10-32V DC
• Certifications: FMVSS-108; SAE J593; IP67 & IP69K

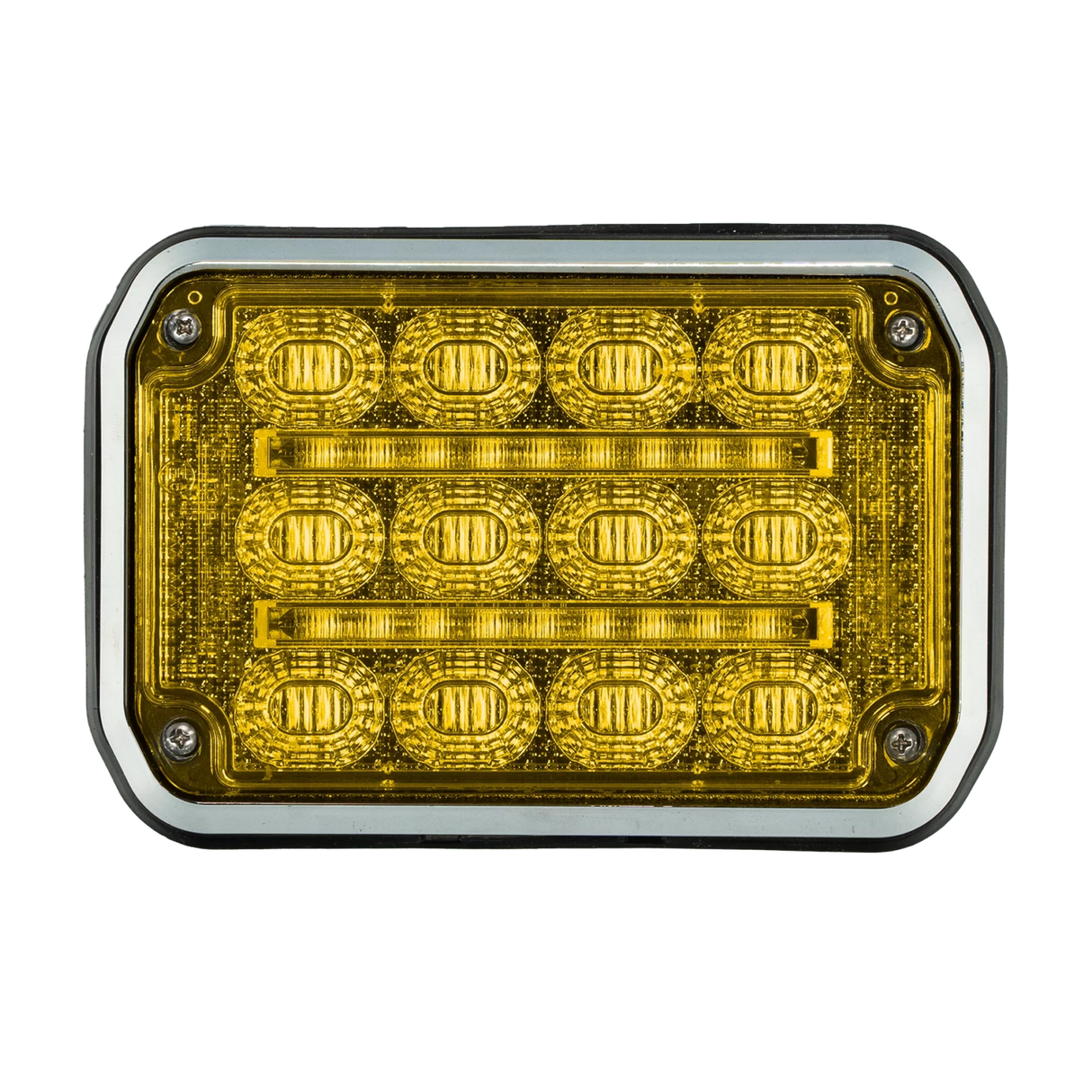

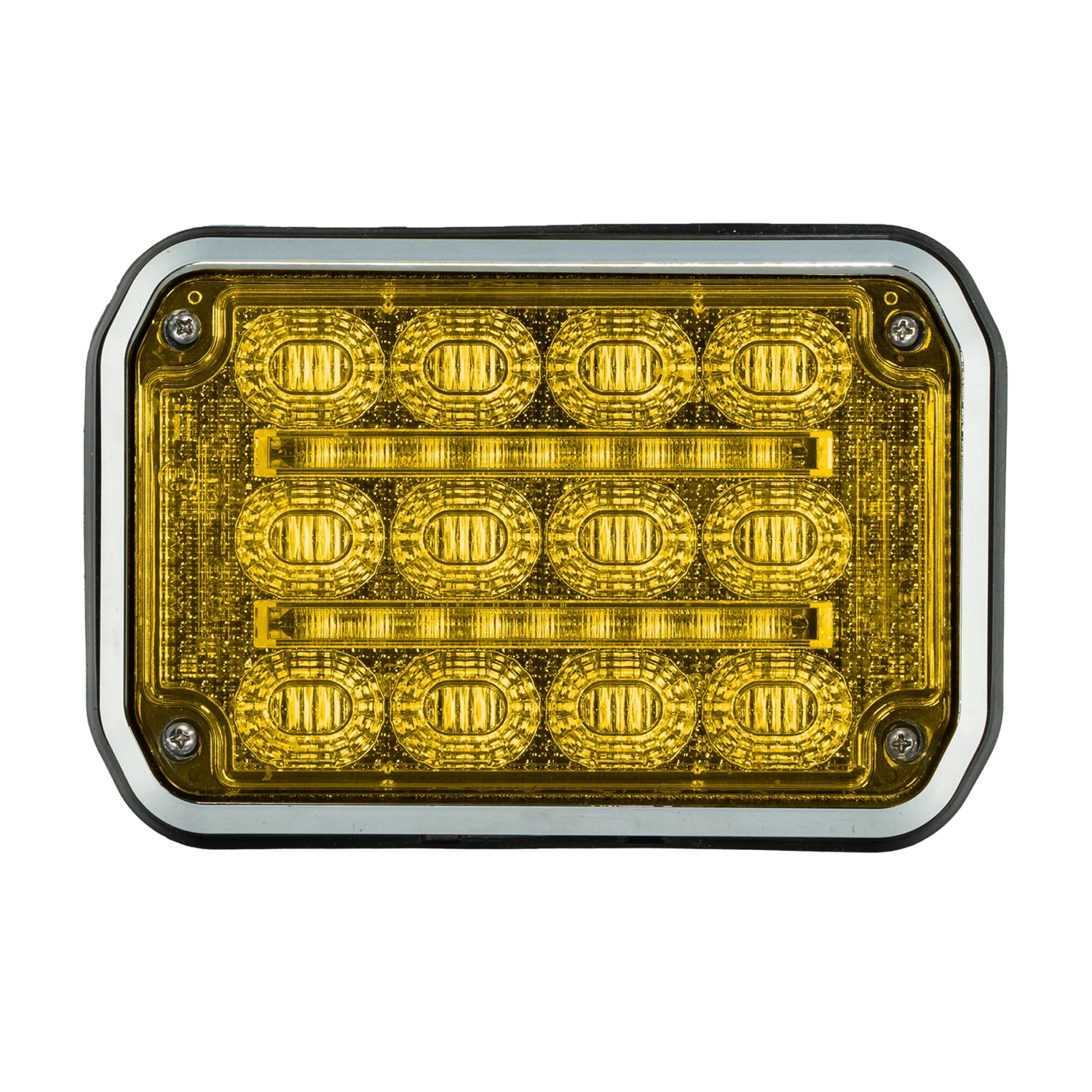

Turn Light

• Dimensions: 6.52” x 0.85” x 4.09”
• Avg. Wattage: 3.36W
• Max. Wattage: 6.72W
• Avg. Amperage: 0.28A @ 12V DC; 0.14A @ 24V DC
• Max. Amperage: 0.56A @ 12V DC; 0.28A @ 24V DC
• Input Voltage DC: 10-32V DC
• Certifications: FMVSS-108; SAE J2261; SAE J588; IP67 & IP69K

Return & Warranty

Lifetime Warranty

Cut Sheet

Instructions

Description

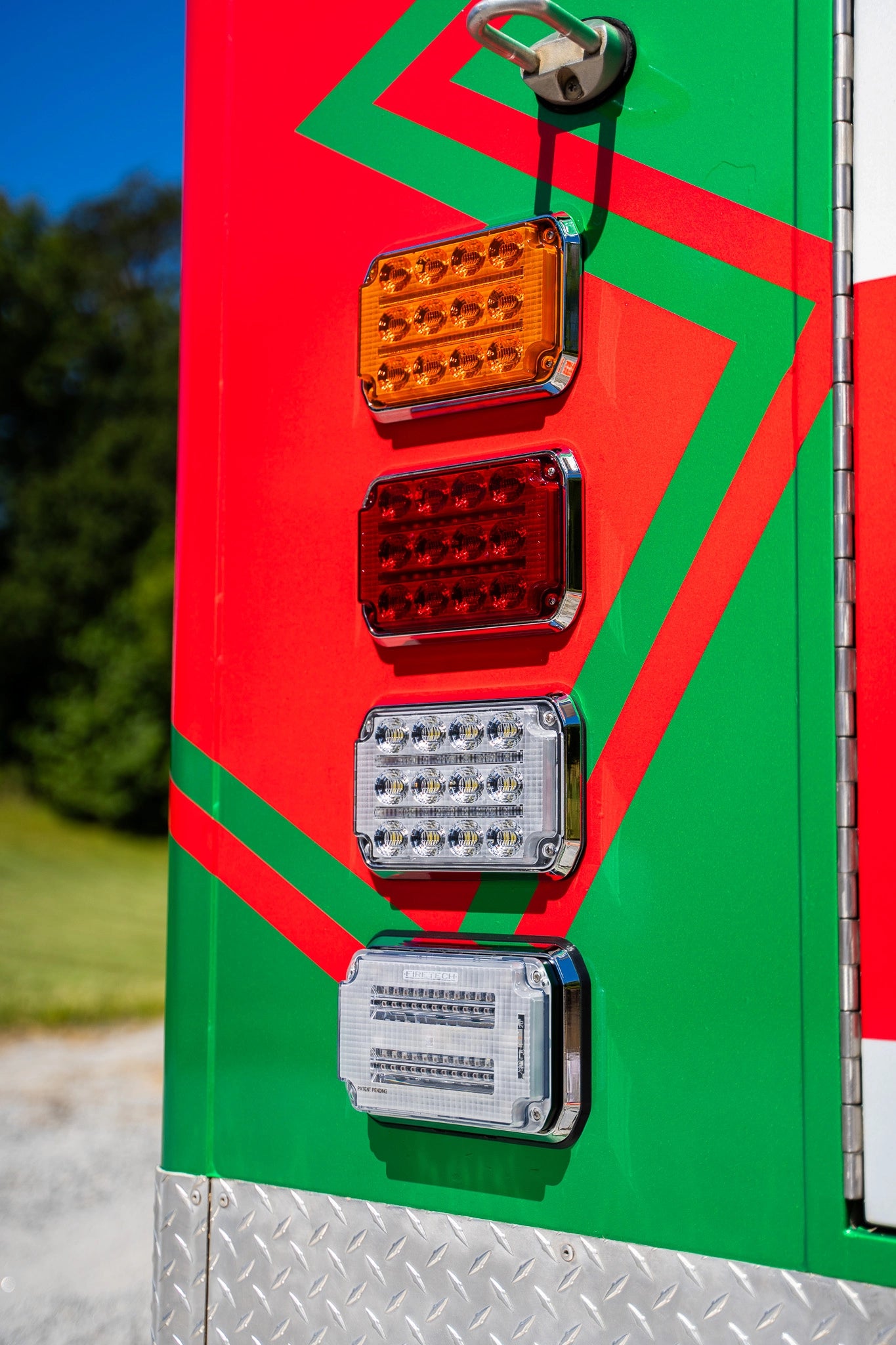

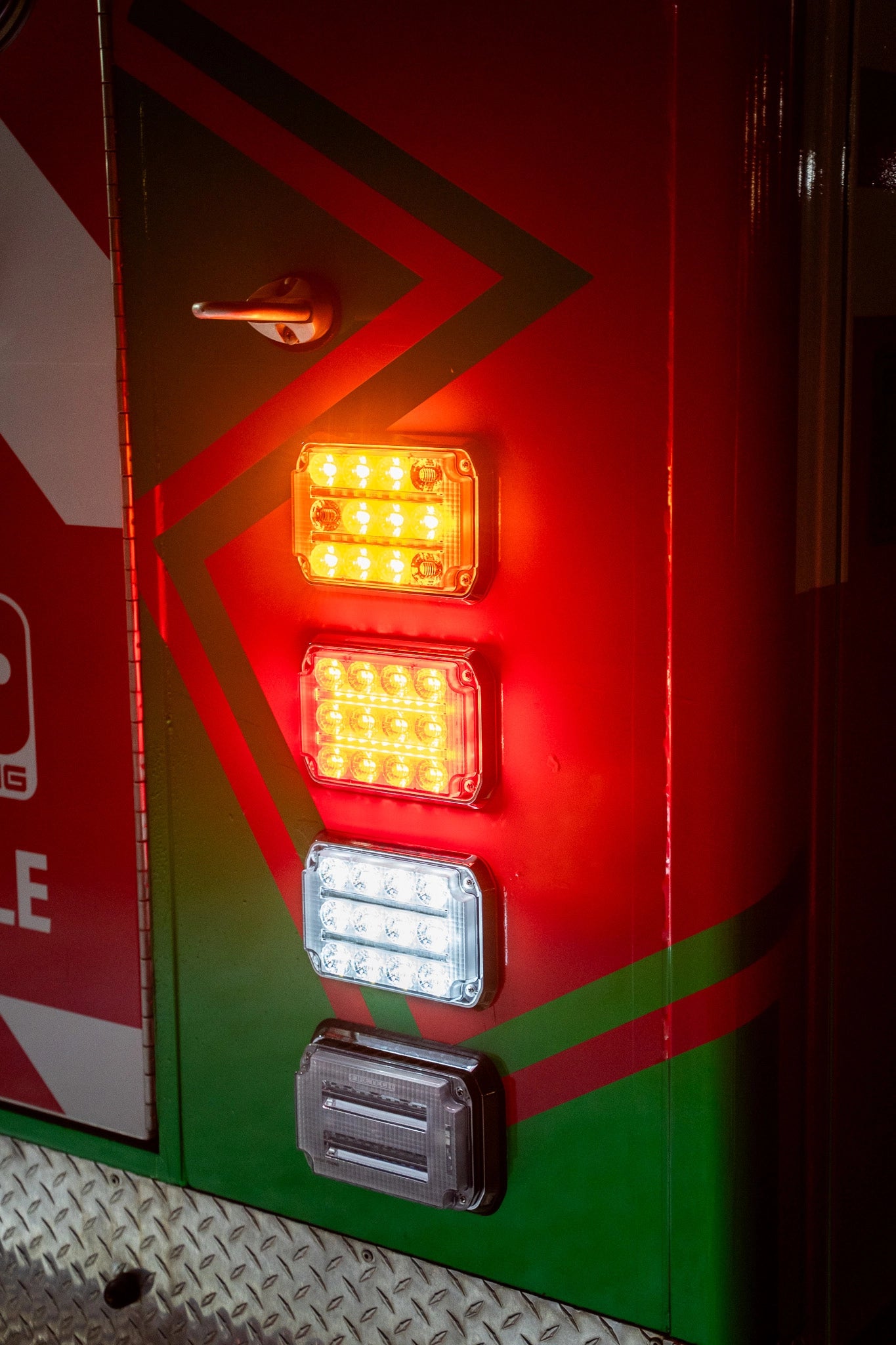

The Firetech Guardian Junior Tail Lights expand the trusted Guardian Series with versatile, economical solutions for your vehicle’s rear lighting needs. Available individually—Stop/Tail, Turn, or Backup—or in complete kits with triple or quad tail light housings, these fixtures give you the flexibility to customize your setup.

By choosing the Guardian Jr series, you can outfit your entire apparatus with fixtures from a single, reliable manufacturer—streamlining installation, ensuring a consistent look, and simplifying maintenance. Every light is backed by the industry’s first Lifetime Advance Exchange replacement warranty, delivering unmatched confidence and long-term value.
