Sho-Me 4-Function Switch Box, Mini Controller

Discover the Sho-Me 4-Function Mini Controller Switch Box, meticulously designed to fit into tight spaces, making it compact enough to be held in your hand. Illuminated switches ensure effortless function selection, enhancing usability in low-light conditions.

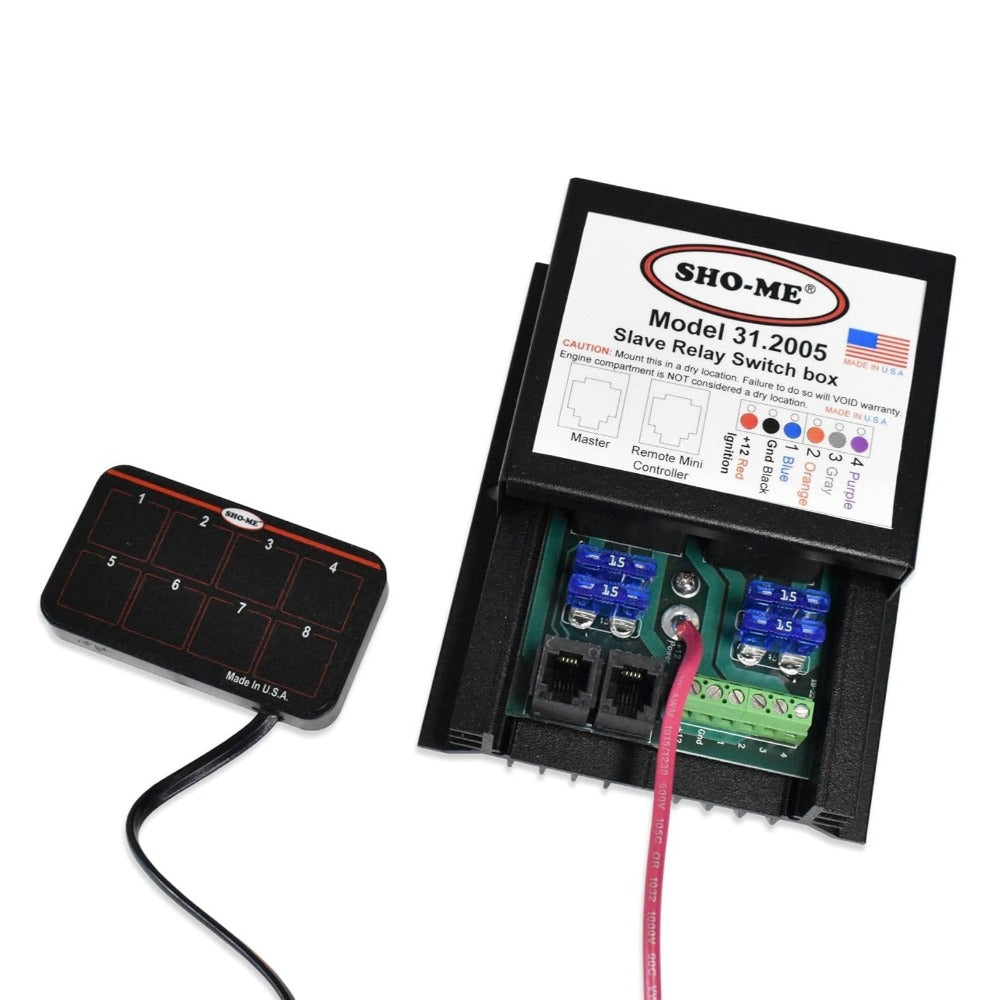

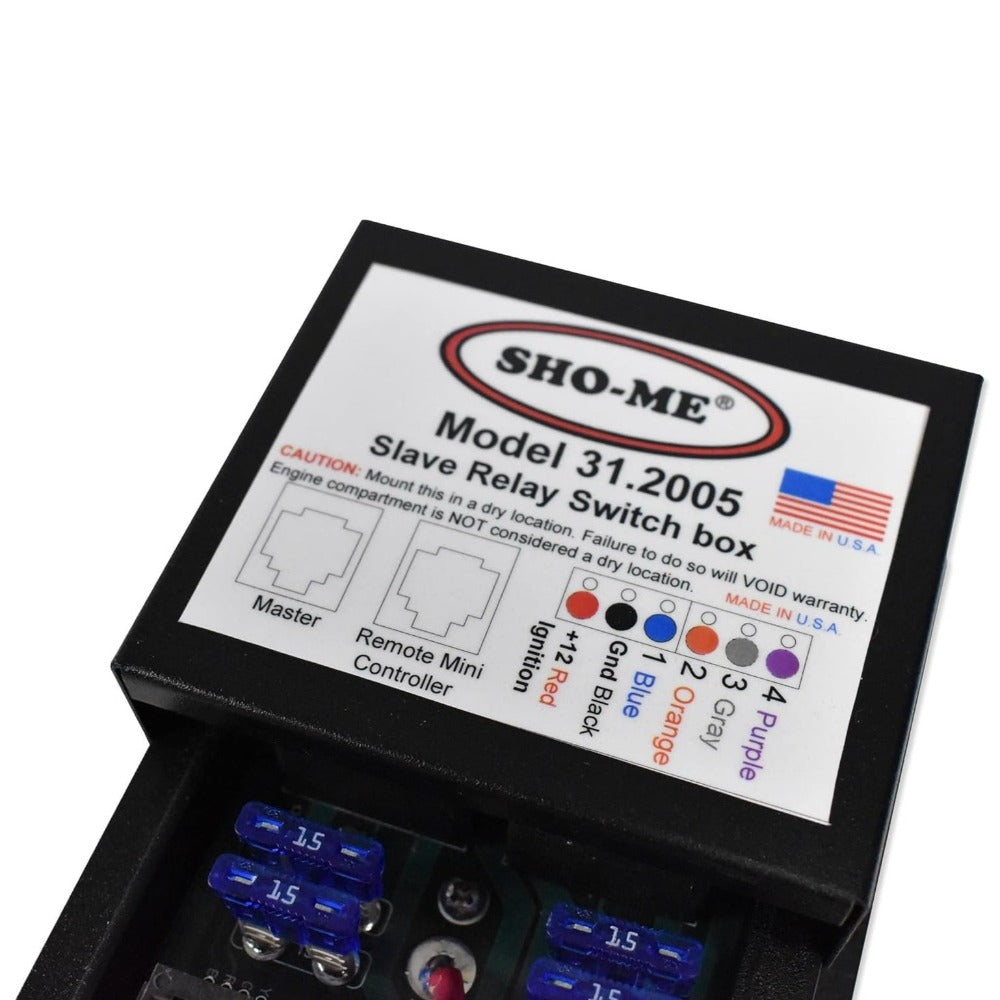

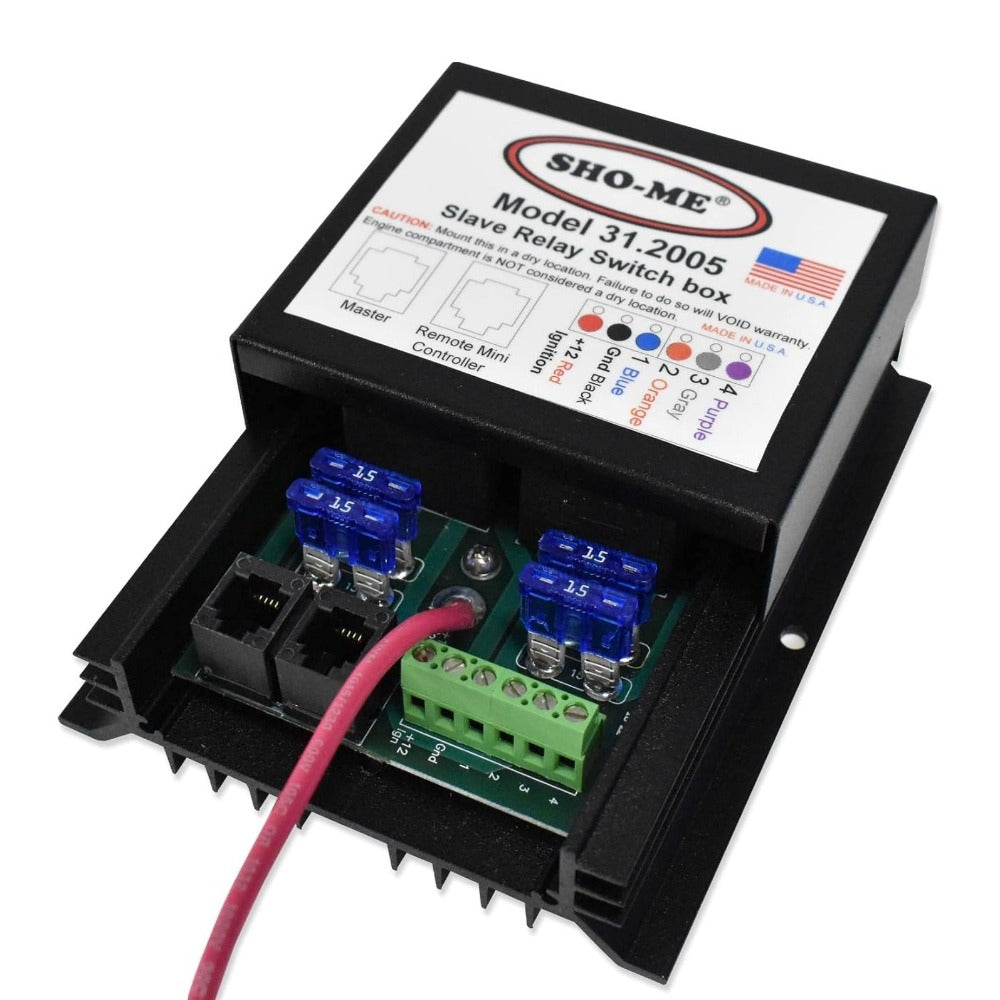

This mini controller seamlessly connects to the relay box via a plug-in attachment, featuring four 15-amp outputs for versatile applications. With a solid-state design, it includes reverse polarity protection for enhanced safety, ensuring reliable performance in diverse settings.

Features:

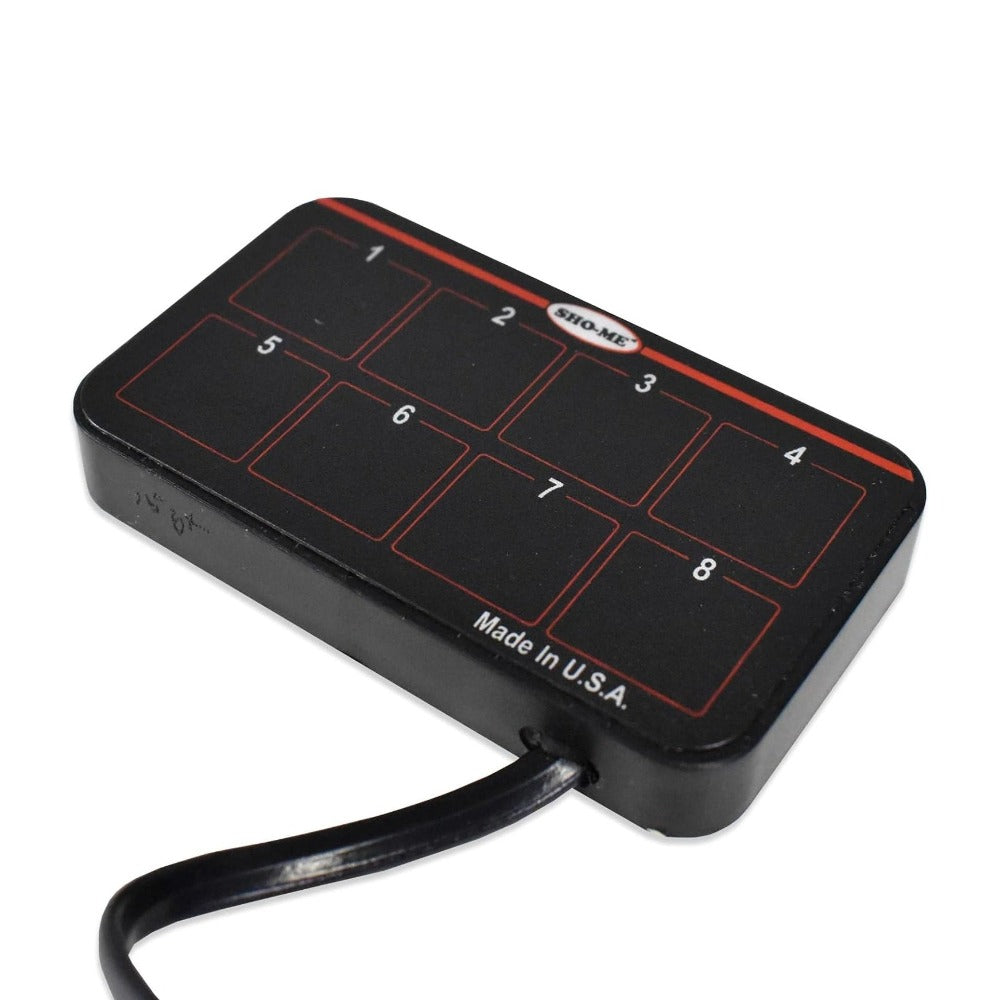

• Compact remote mini controller mounts in tight spaces or can be hand-held
• Soft-touch switches
• LED lights illuminate each switch and highlight selected function
• The controller easily connects to the switch box with a plug-in attachment
• Solid-state electrical components
• Engineered to withstand reverse polarity and high-voltage spikes

Tech Specs:

• Current Rating: 15 Amps
• Operating Voltage: 12 Volts
• Connector Type: ‎Plug-In
• Mounting Type: ‎Plug-In Mount
• International Protection Rating: ‎IP54
• Number of Positions: ‎4
• Connectivity Protocol: ‎X-10
• Item Weight: 2.25 pounds
• Package Dimensions: ‎5.75 x 5.75 x 5.5 inches
