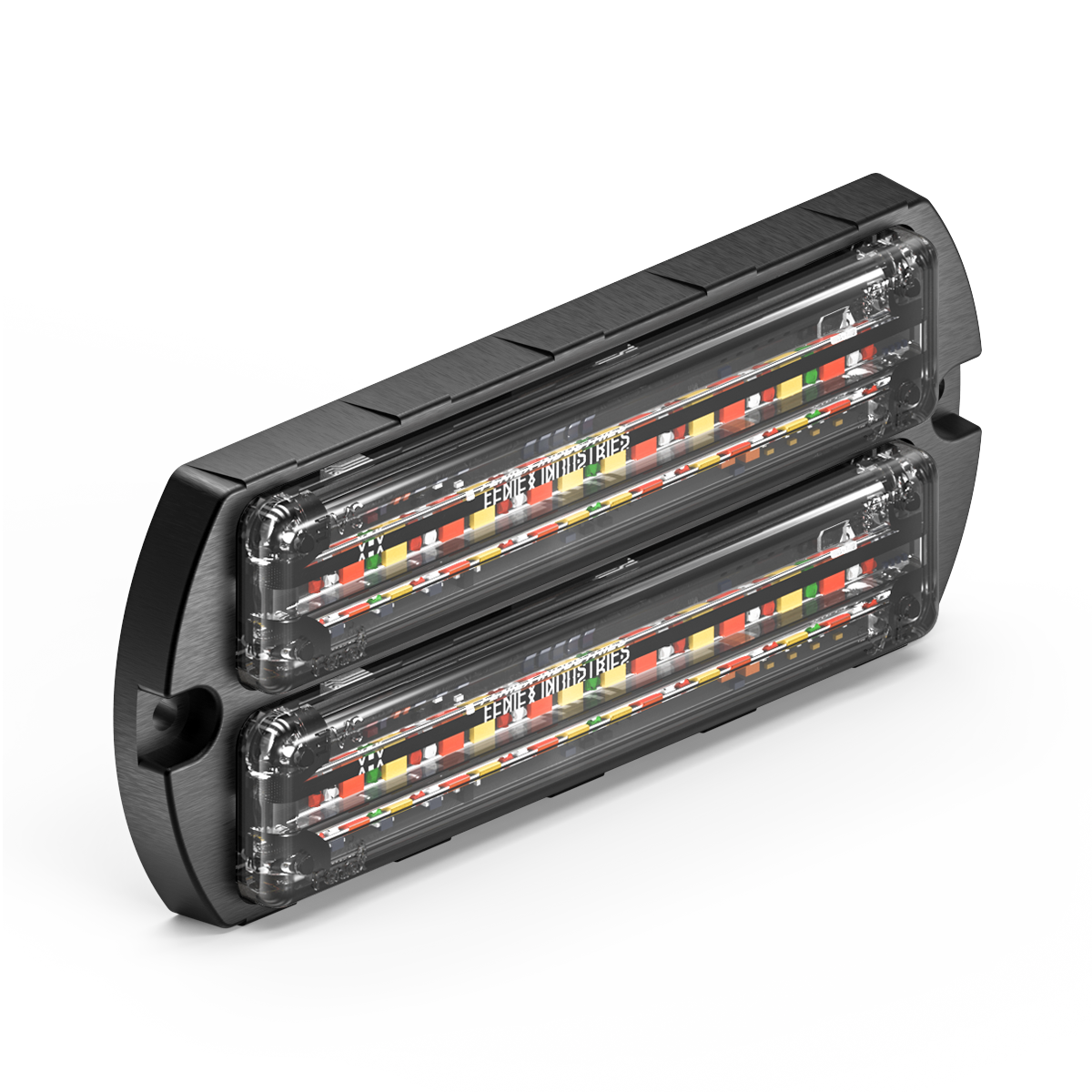

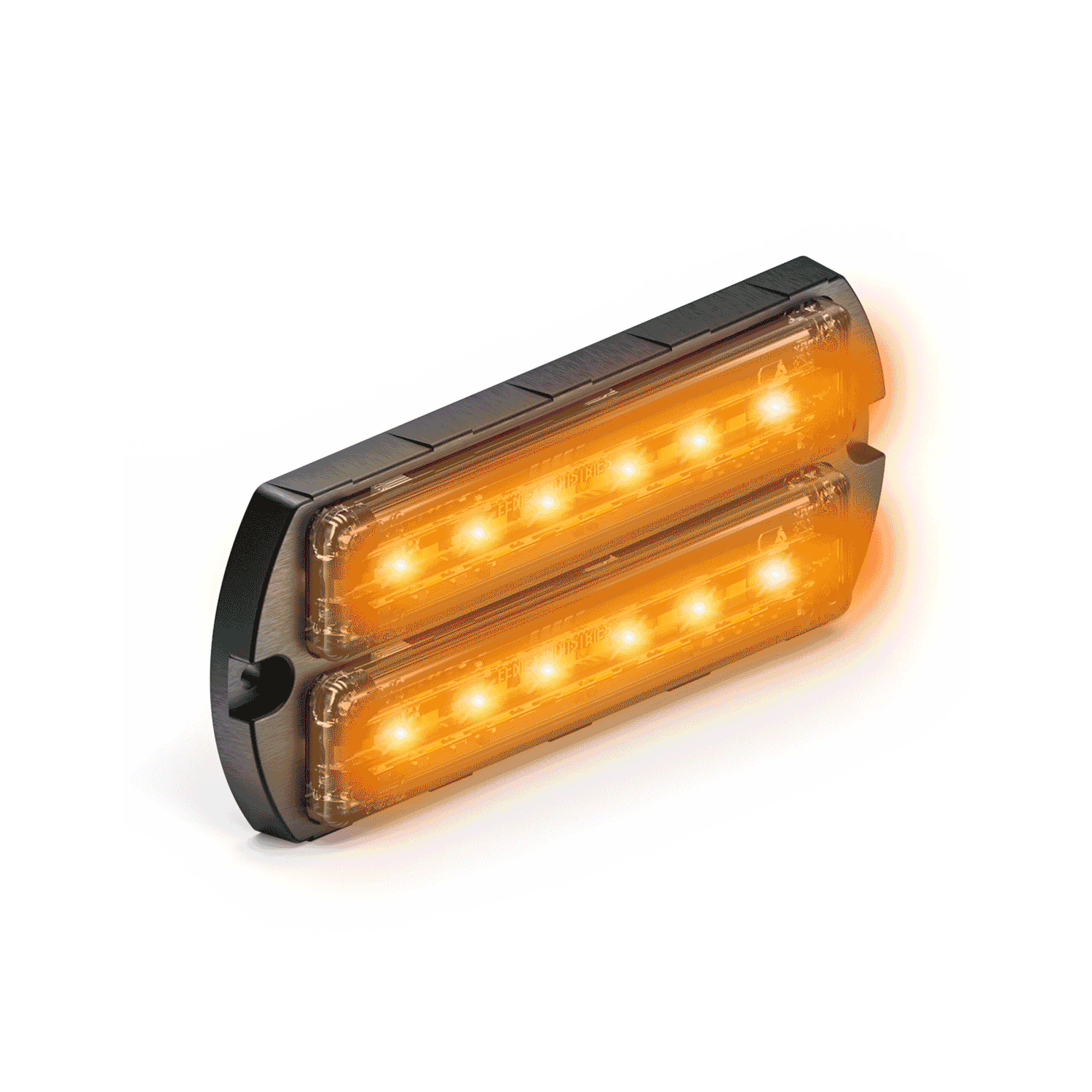

Feniex Q Series Flat Dual Surface Mount

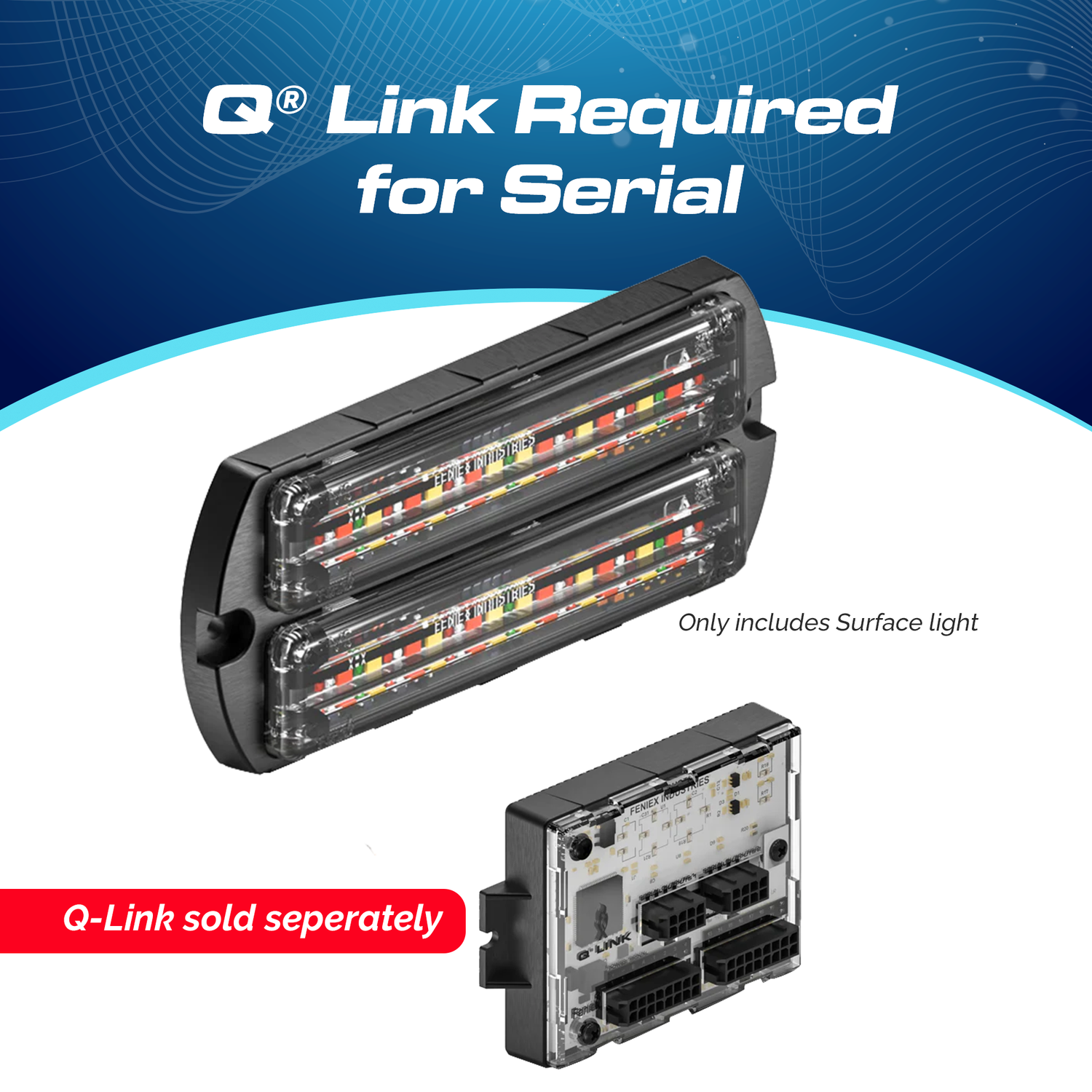

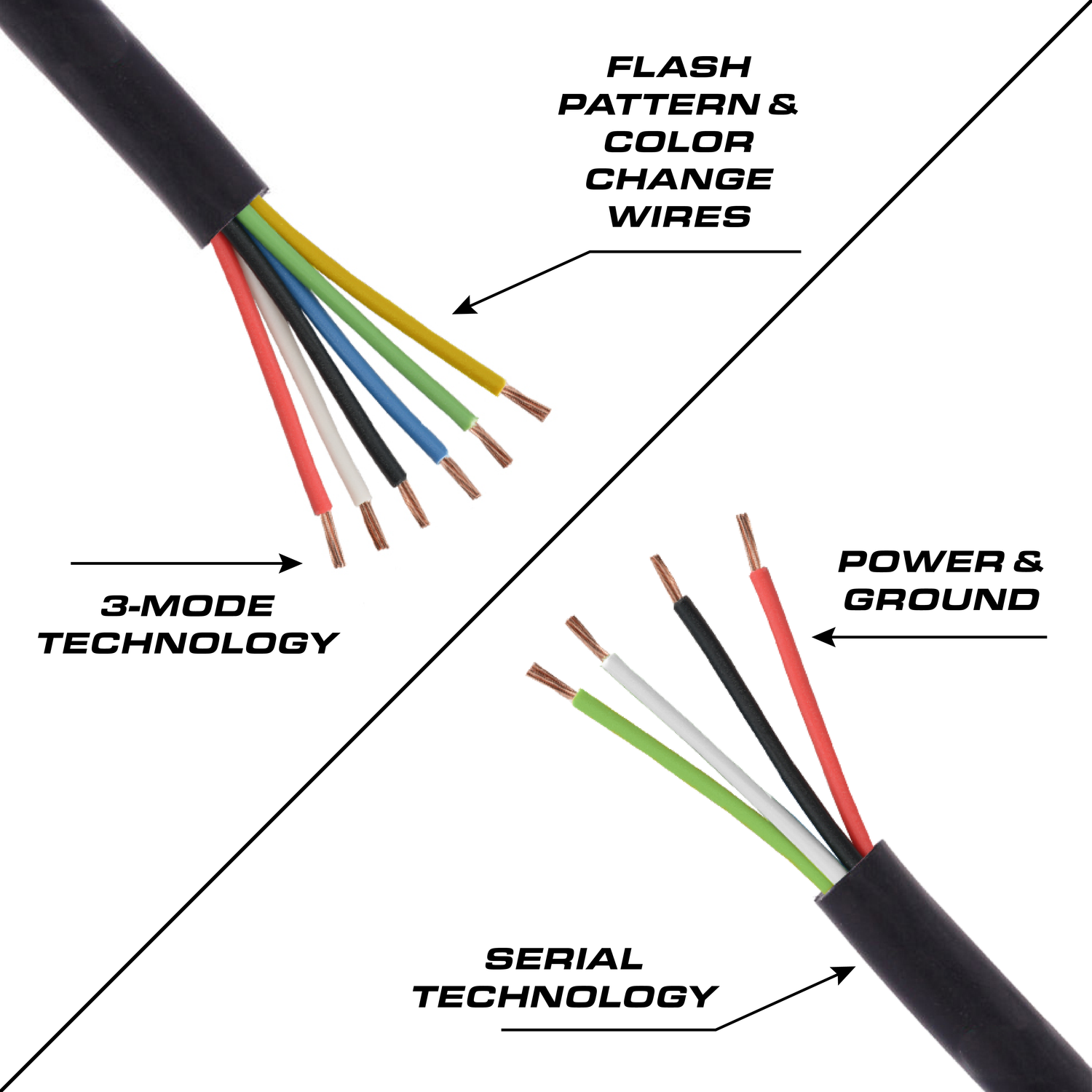

Introducing the Feniex Q Series Flat Dual Surface Mount, the first 5-color, serial perimeter light with vertically stacked light heads for doubled brightness. This sleek surface mount offers Blue, Red, Amber, White, and Green for enhanced safety and visibility. The Q Series 3 Mode is compatible with any 12v switch or controller, it syncs with all Feniex smart modules using 3-mode technology and features bright 60-degree optics. The Feniex Q Serial light heads are built with state-of-the-art serial technology that connects using 2 serial wires to the Q-Link device. You can sync up to 48 light heads to the Q-Link device and program any function and color using our intuitive Q-Link Software. Designed for emergency responders and utility vehicles, it features bright 60-degree optics for clear visibility in any condition. Customize your lighting for urgency, traffic control, or precise work zone illumination.

Tech Specs:

• 3 Mode Features:

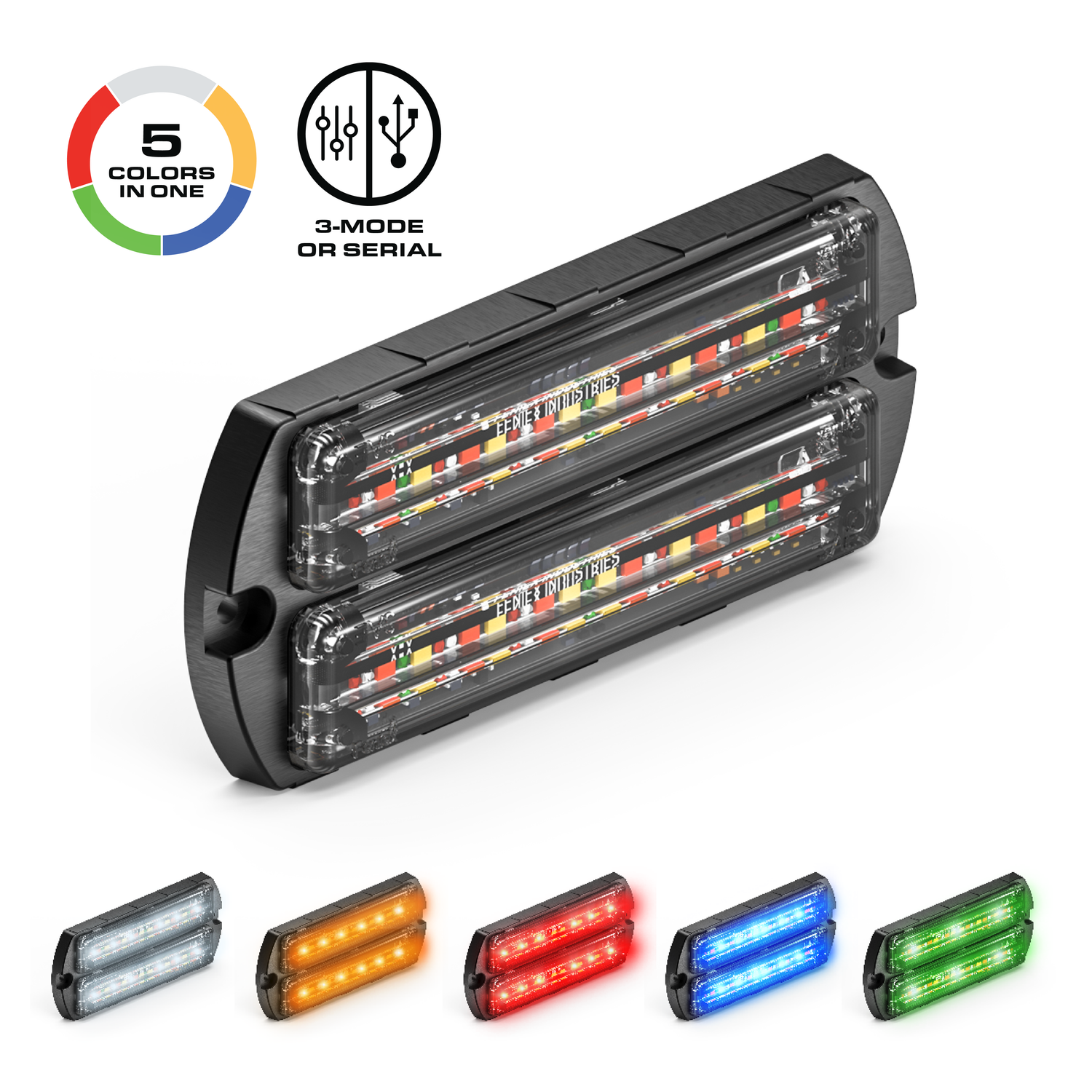

  • Blue, Red, Amber, White and Green colors in each module
  • Syncs with all Quad, Lux and Q Series products
  • 3 User Programmable Modes

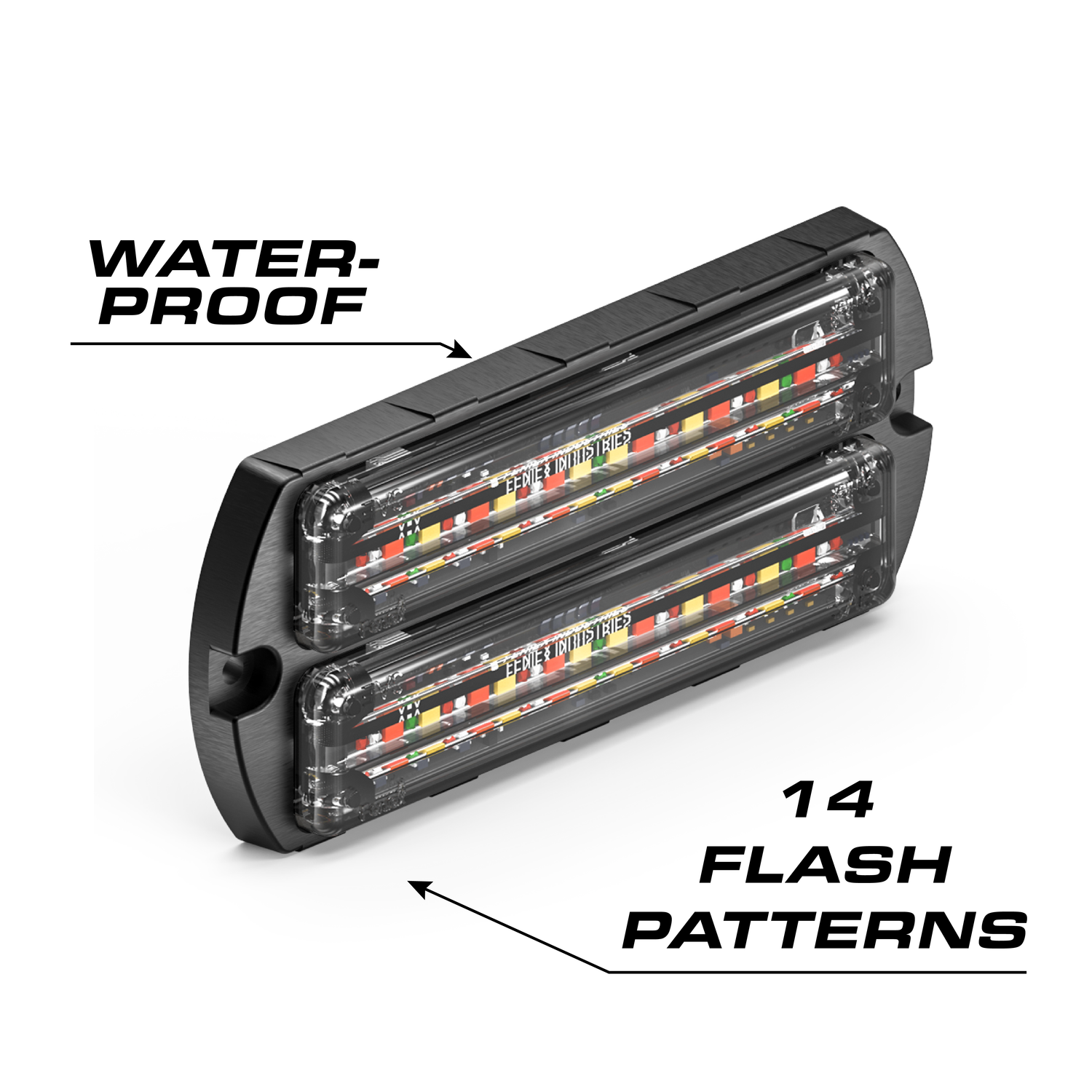

  • 14 User Programmable Flash Patterns
  • Flood, Cruise, and Stop, Tail, Turn pattern capable
  • Color lock mode available during installation

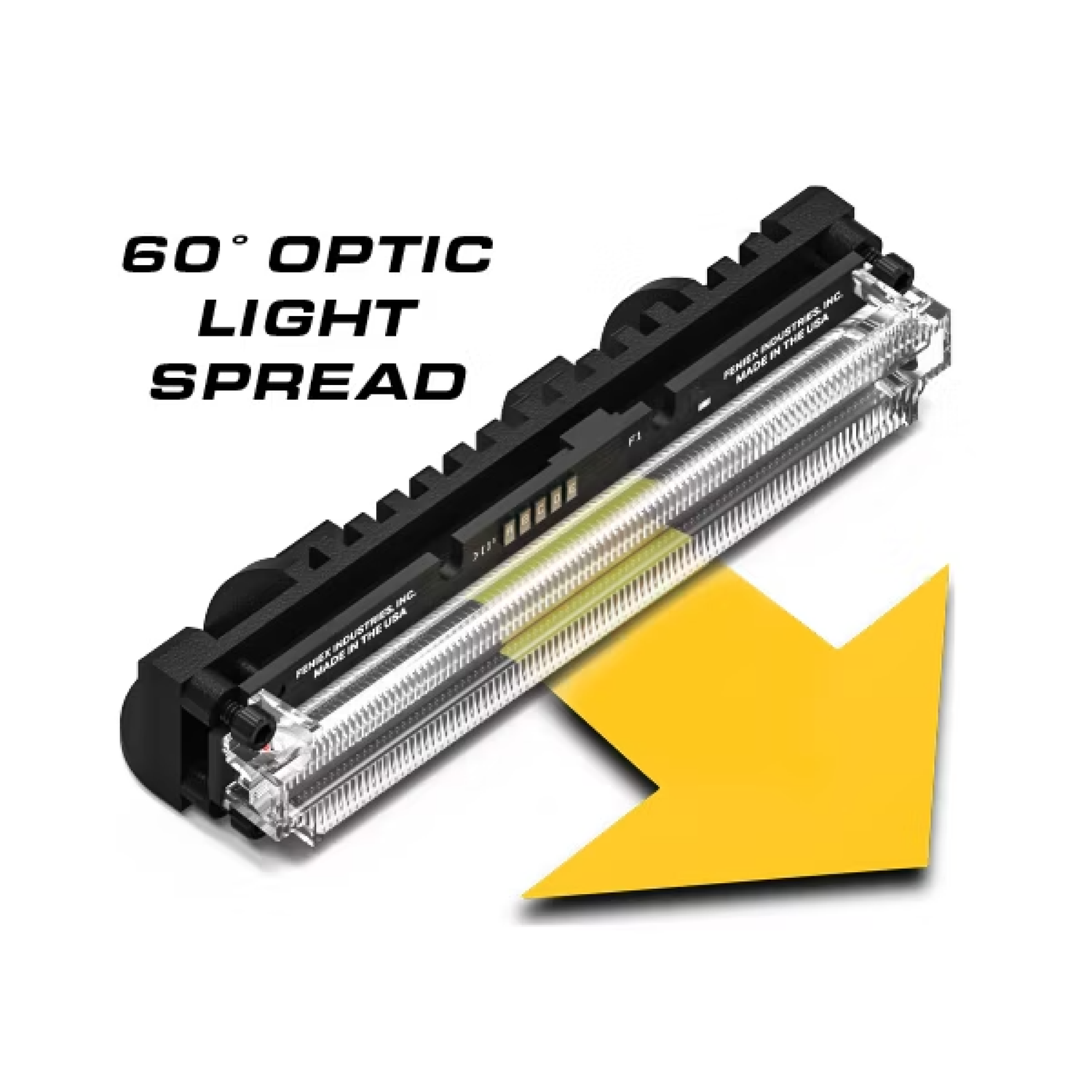

  • 60-degree optical light spread for off-axis visibility
  • Clear-coated polycarbonate lens
  • Current Draw: 2 Amp
  • Cable Length: 1 Foot
  • LED Count: 54 LEDs
  • Input Voltage: 10-18VDC

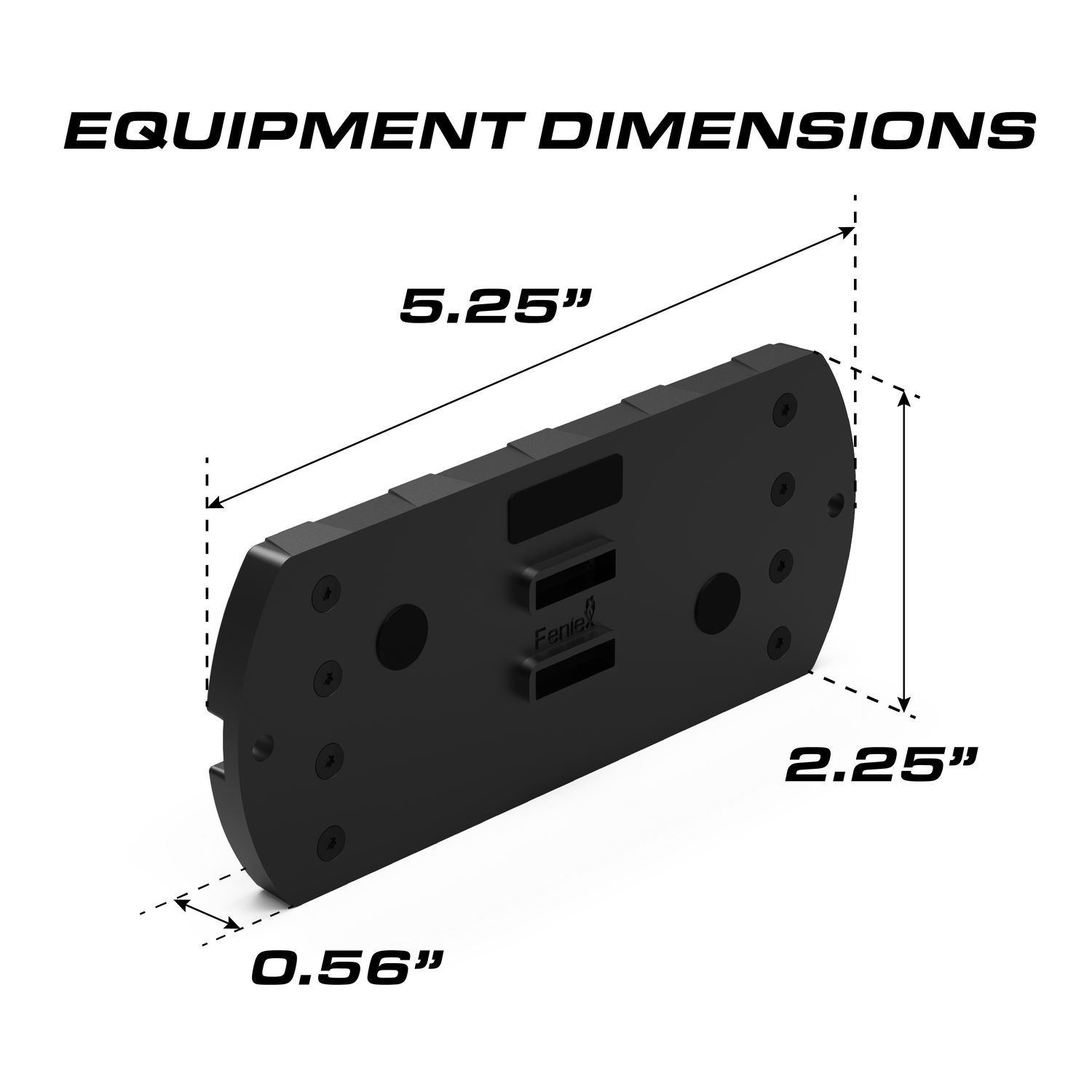

  • Dim: 5.25" x 0.56" x 2.25"
  • Waterproof & IP67 rated
  • 5 Year Manufacturer Warranty
  • SAE, CT13, KKK, NFPA, ECE R65 Class 1 Certified
  • Made in the USA: Austin, TX
• Serial Features:
  • Blue, Red, Amber, White, and Green colors in each module
  • Syncs with up to 48 lightheads using one Q-Link device
  • Comes with unlimited use of Feniex’s Q Link Software
  • 27 programmable inputs with Q-Link device (sold separately)
  • Available functions include Flood, Cruise, and Stop Tail Turn and more
  • Over 20 programmable flash patterns
  • 60-degree optical light spread for off-axis visibility
  • Clear-coated polycarbonate lens prevents cracking & yellowing
  • Waterproof & IP67 rated for protection against elements
  • SAE, CT13, KKK, NFPA, ECE R65 Class 1 Certified
  • Current Draw: 2 Amp
  • Cable Length: 1 Foot
  • LED Count: 54 LEDs
  • Input Voltage: 10-18VDC
  • Dim: 5.25" x 0.56" x 2.25"
  • 5 Year Manufacturer Warranty
  • Made in the USA: Austin, TX
