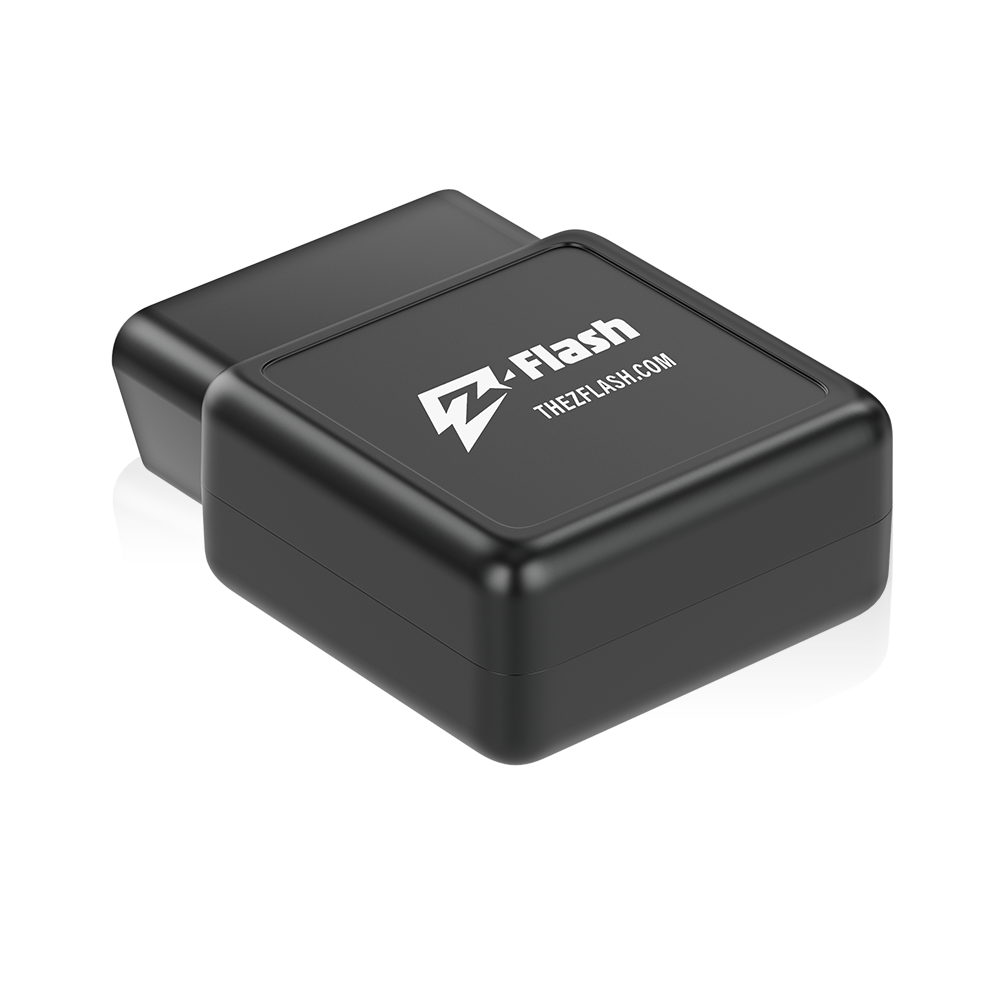

Z-Flash OBD Flasher Module for GM

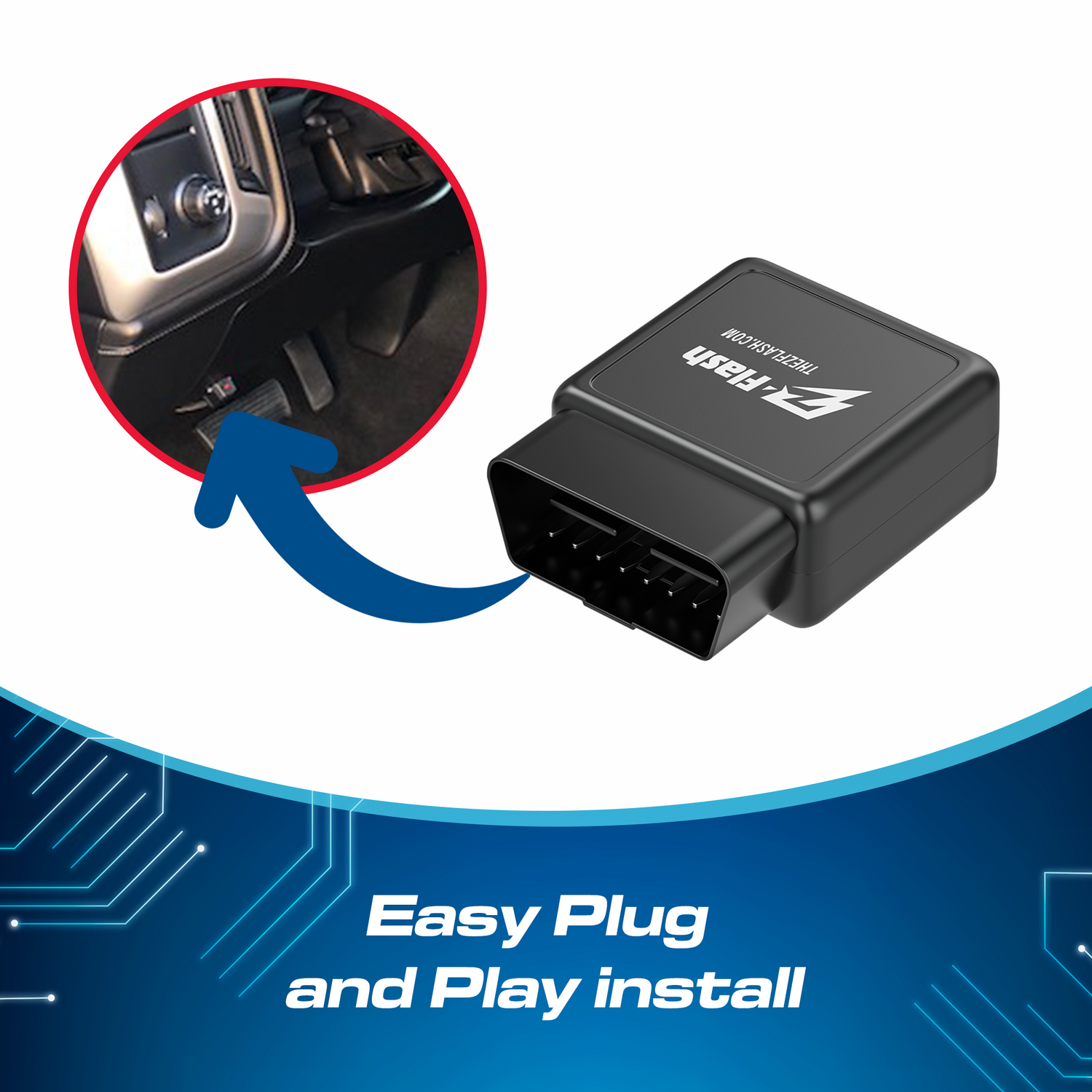

Discover unparalleled control over your GM vehicle's factory lights with the Z-Flash OBD Flasher Module. Compatible with a wide range of cars, trucks, and SUVs, this module offers effortless installation in just minutes using the provided switch or by integrating with your preferred external controller.

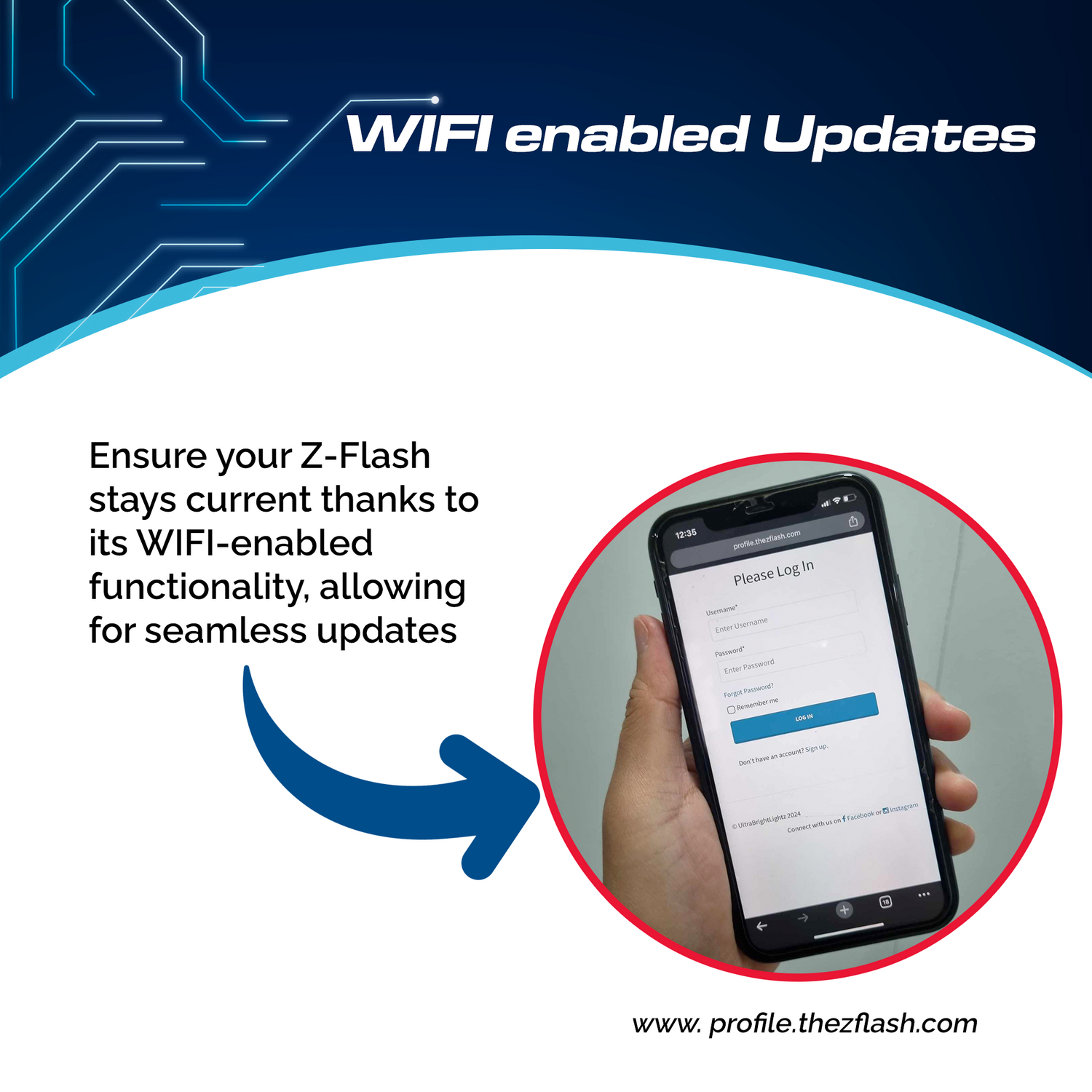

The Z-Flash GM connects directly to the OBD-II port of select GM vehicles, enabling strobing of high beam headlights, low beam headlights, front and rear turn signals, reverse lights, fog lights, and the center high-mounted stop light. You can easily program the module via WiFi using your smartphone, eliminating the need for a laptop or computer.

Our Z-Flash modules are designed for straightforward installation and leave no trace once removed. They are engineered not to harm your vehicle and can be uninstalled at any time, ensuring peace of mind and flexibility.

What's Included:

• One (1) Z-Flash Module
• One (1) Switch

Compatibility:

Buick Vehicles

Year	Model
2006-2011	Lucerne
2008-2017	Enclave
2008-2016	Regal
2010-2016	LaCrosse
2011-2016	Verano
2013-2017	Encore
2016-2017	Cascada
2016-2017	Envision

Cadillac Vehicles

Year	Model
2006-2011	DTS
2007-2016	Escalade
2007-2016	Escalade ESV
2007-2014	Escalade EXT
2007-2016	SRX
2008-2016	CTS
2013-2016	ATS
2013-2016	XTS
2014-2016	ELR
2016-2017	CT6

Chevrolet Vehicles

Year	Model
2006-2019	Impala
2007-2014	Avalanche
2007-2016	Equinox
2007-2016	Silverado
2007-2016	Suburban
2007-2016	Tahoe
2008-2022	Express Van
2009-2016	Traverse
2010-2016	Camaro
2011-2017	Caprice PPV
2011-2016	Cruze
2011-2016	Volt
2013-2016	Malibu
2013-2015	Spark
2013-2017	Trax
2014-2016	Corvette
2014-2016	SS
2015-2016	Colorado

GMC Vehicles

Year	Model
2007-2016	Acadia
2007-2016	Sierra
2007-2016	Yukon
2007-2016	Yukon XL
2008-2022	Savana Van
2010-2016	Terrain
2015-2016	Canyon

Other Vehicles

Year	Make	Model
2008-2009	Hummer	H2
2008-2009	Hummer	H2 SUT
2007-2009	Pontiac	Torrent
2008-2009	Pontiac	G8
2009-2011	Saab	9-5
2011	Saab	9-4X
2007-2010	Saturn	Outlook
2007-2009	Suzuki	XL7

Tech Specs:

• Made in the USA

• Three (3) flash patterns in drive and park
• Pattern 1 flashes everything
• Pattern 2 flashes everything, except the headlights
• Pattern 3 flashes only the rear lights

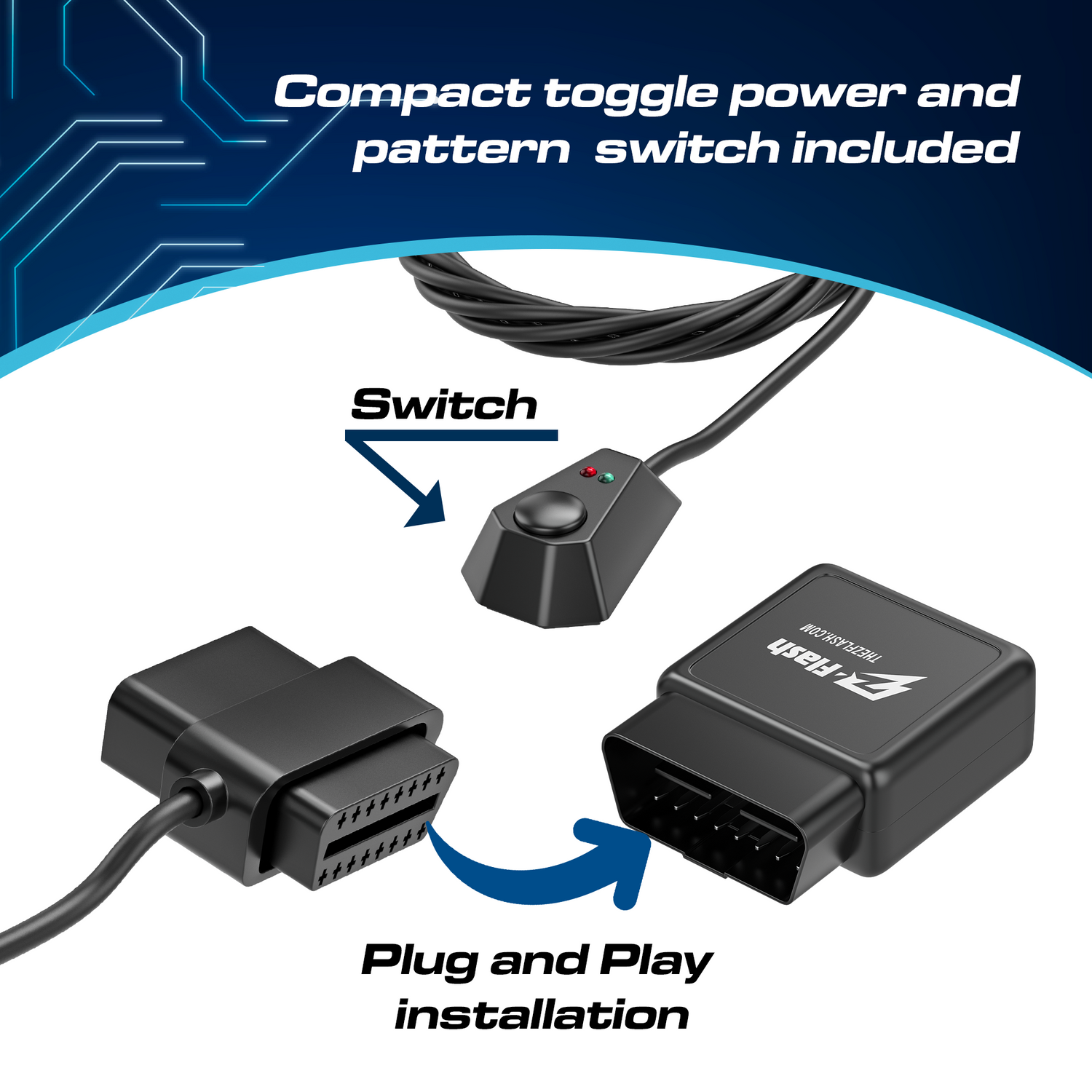

• Integrated switch can be removed for hardwiring purposes
• Includes free programming software and online account

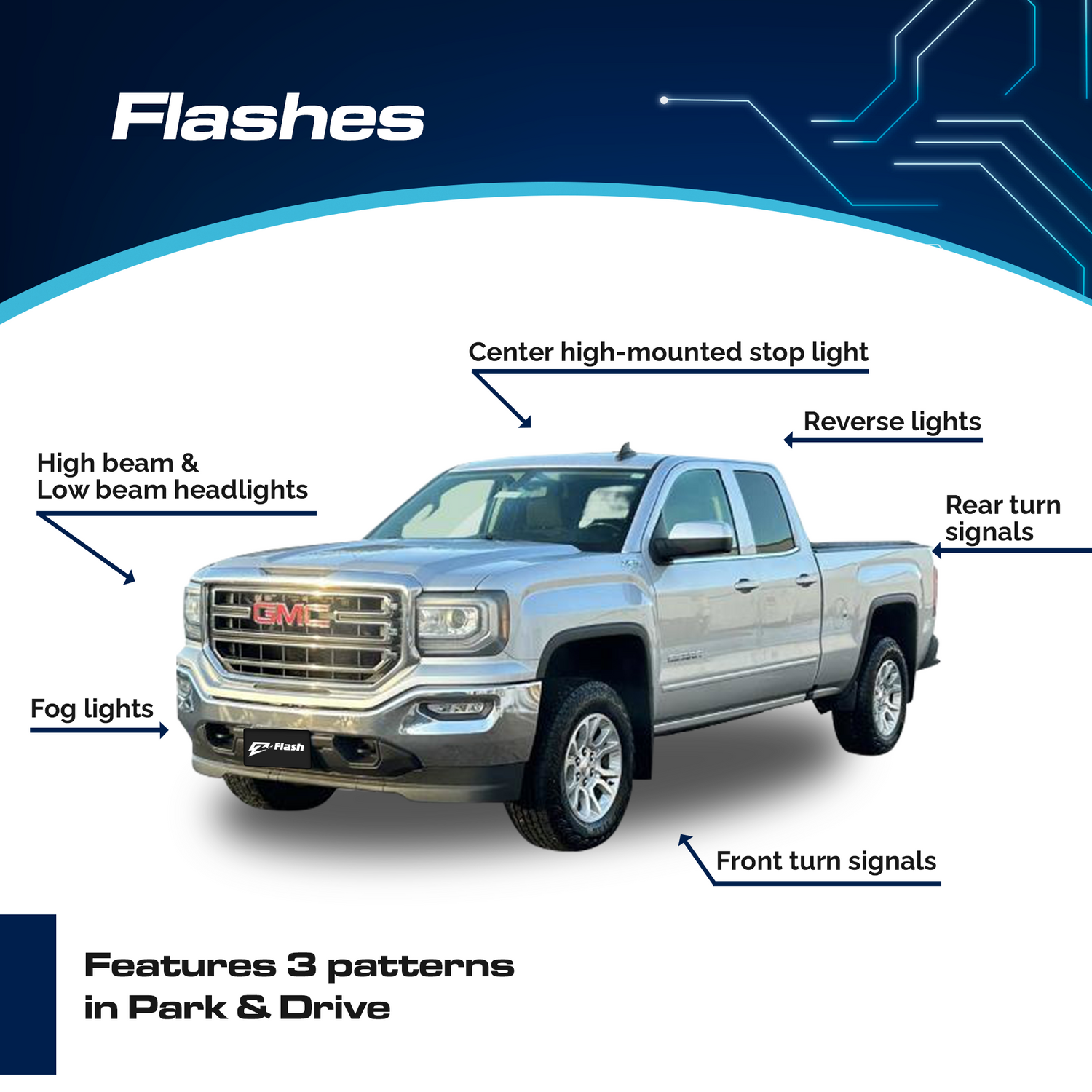

• When activated, the Z-Flash OBD Flasher for GM vehicles can flash:
• High beam headlights
• Low beam headlights
• Front turn signals
• Rear turn signals
• Reverse lights
• Fog lights
• Center high-mounted stop light

FAQs:

How does it work?

The Z-Flash module activates vehicle lights using diagnostic signals without altering computer code or vehicle functionality. It utilizes standard diagnostic codes, akin to those employed by dealers for vehicle diagnostics.

Will this burn my computer?

The Z-Flash module operates without emitting voltage, ensuring it does not damage the vehicle's computer. Its operation is similar to plugging a USB stick into your PC, guaranteeing a safe and straightforward installation process.

Will my brake lights still work?

When active, your vehicle's brake and turn signals take precedence over the flashing pattern set by the Z-Flash module. This safety-critical feature cannot be disabled, ensuring clear and effective signaling at all times.

Does this put my vehicle in reverse?

Rest assured, the Z-Flash module does not alter your vehicle's gears. However, in some vehicles, activating the reverse lights may inadvertently trigger the backup camera screen due to their wiring configuration. Currently, this feature cannot be disabled.

Will this burn up my bulbs?

Similar to other headlight and taillight flashers, the Z-Flash module may accelerate bulb wear beyond normal rates. Aftermarket HIDs, in particular, are prone to rapid burnout due to their ballasts not being designed for flashing operations.

Why are my Halogen bulbs not flashing or very dim?

Halogen bulbs necessitate a charge-up and cool-down period, unlike LEDs. Therefore, they cannot be flashed as rapidly as LED bulbs.

Is the Z-Flash Plug and Play Flasher for Ford Vehicles traceable?

After removal, the flasher module leaves no indication of ever being installed.
