Feniex Brake-Tail-Turn Lux Surface Mount

FeniexSKU: FEN-BTT-7900

Sale price$169.99

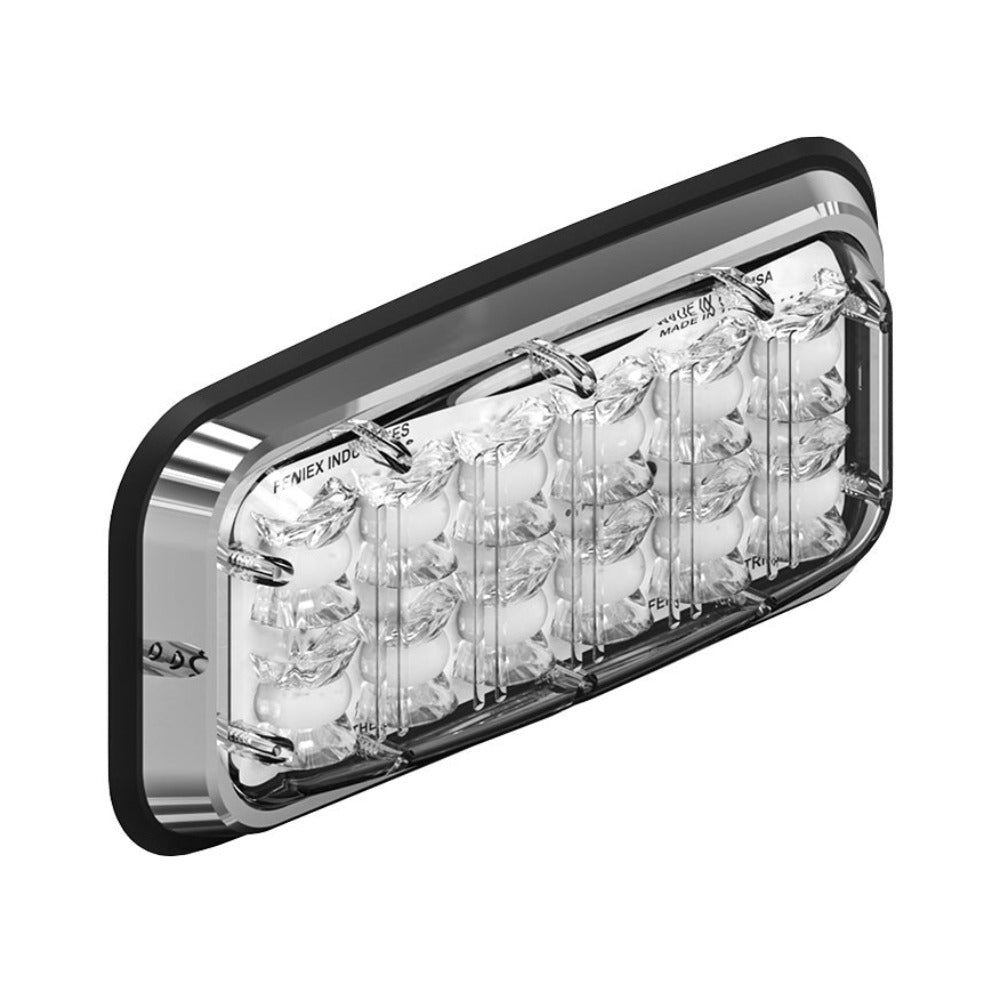

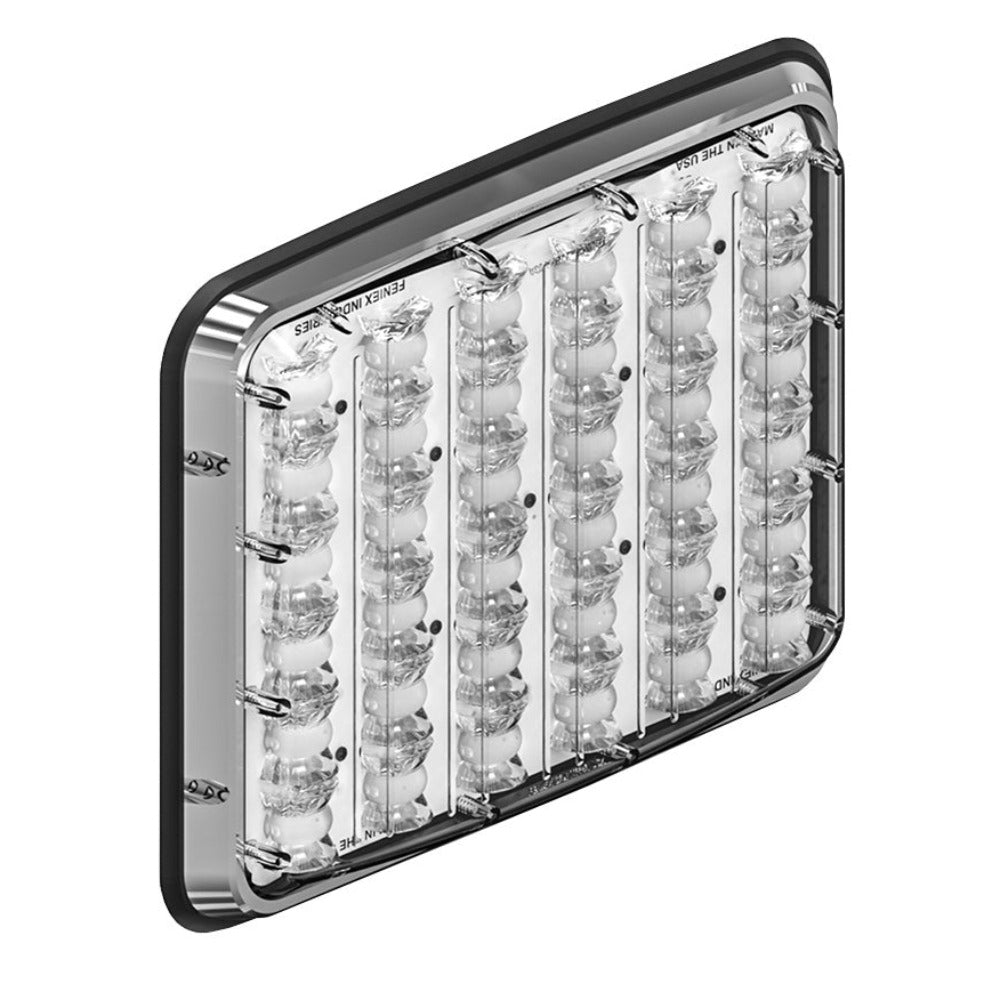

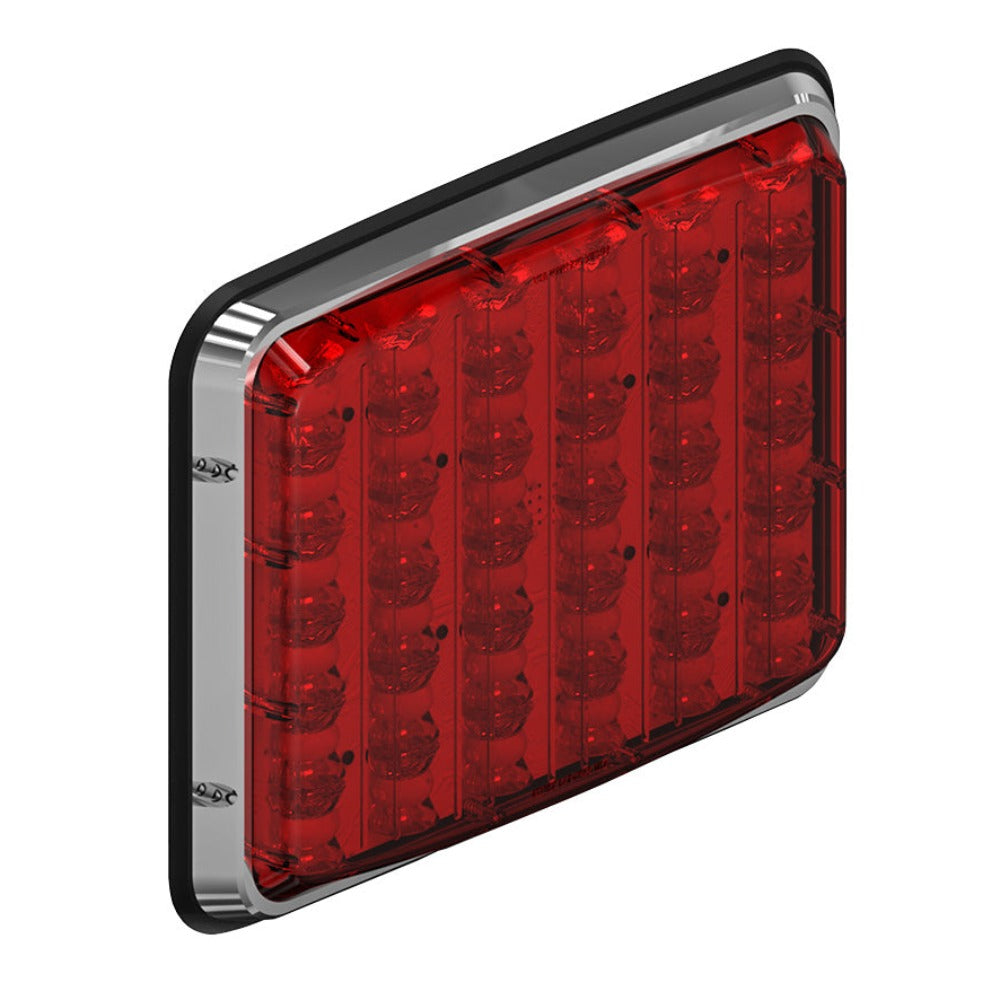

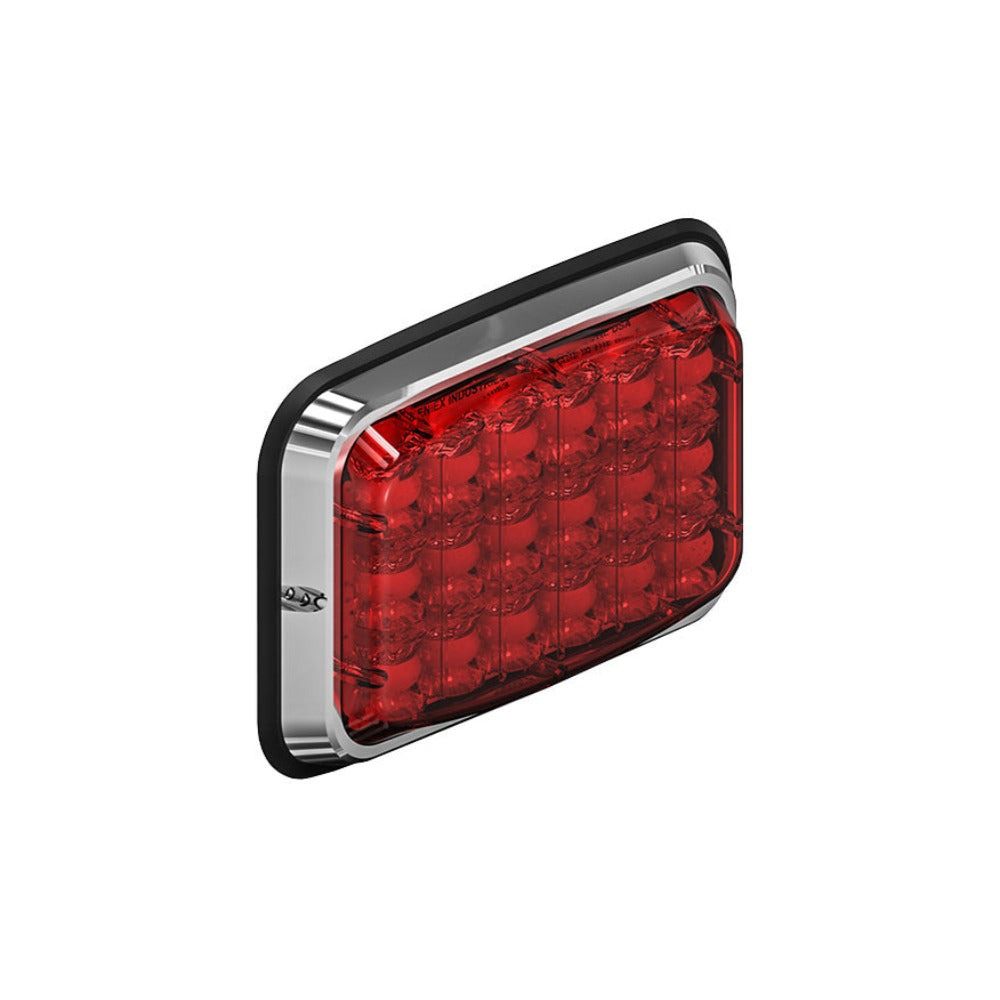

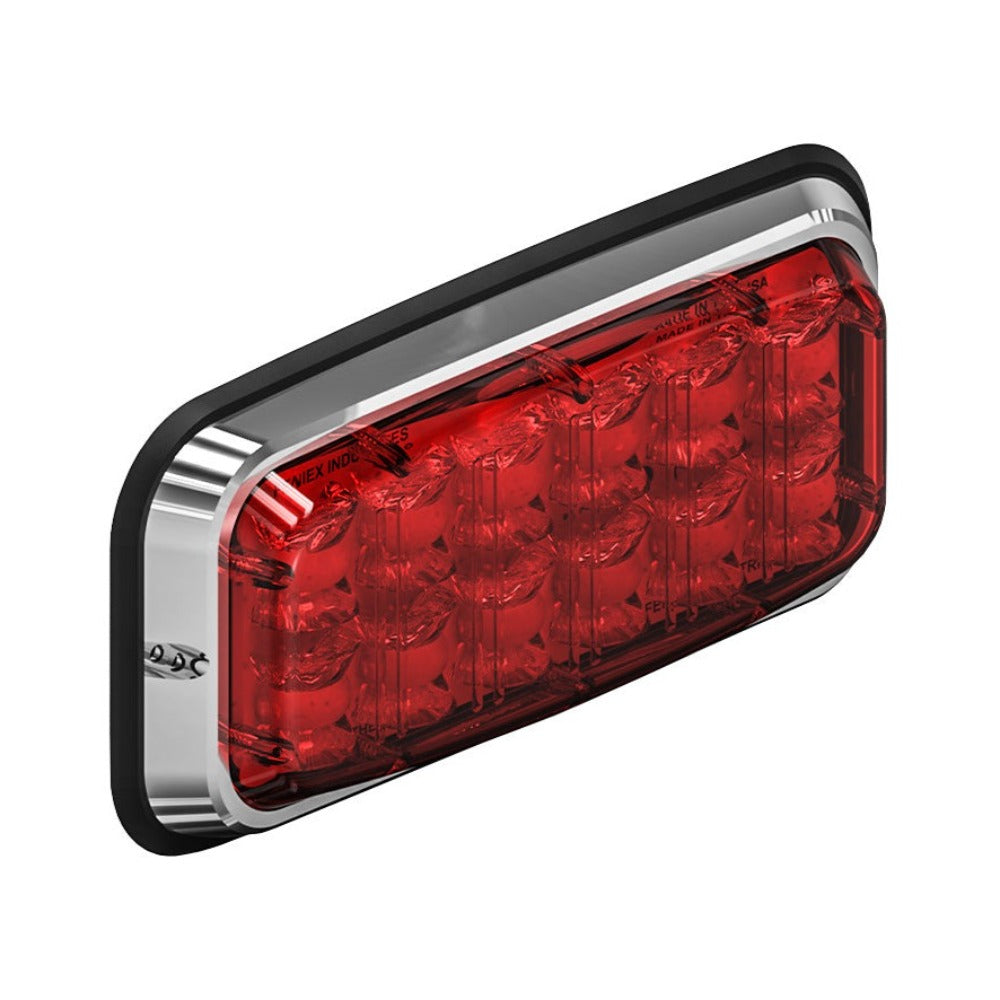

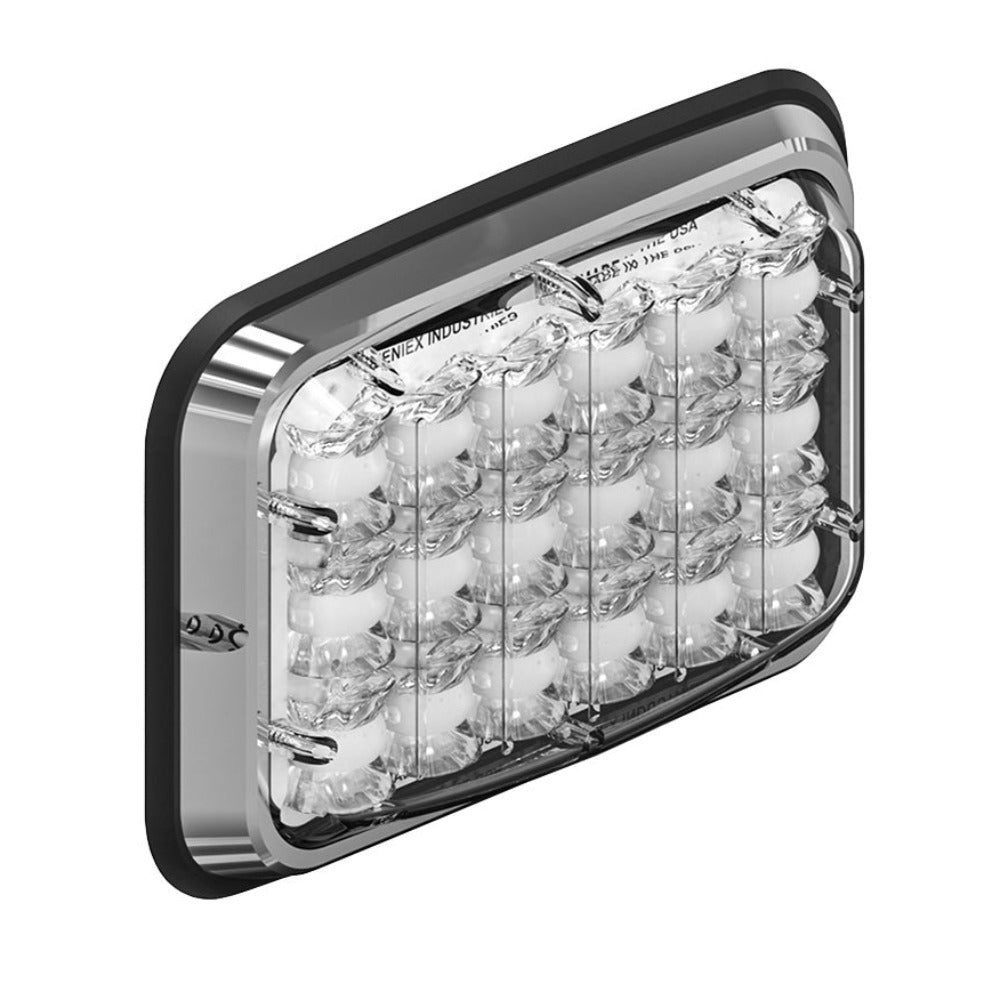

The Feniex Brake-Tail-Turn Lux series is designed with a 180° optic, providing maximum visibility across all lanes and intersections. It’s ideal for fire and EMS vehicles who want to enhance their brake/tail/turn signaling with a much more powerful alternative. The Brake-Turn-Tail Lux series is available in three sizes: 9x7 (36 LEDs), 7x3 (12 LEDs), and 6x4 (18 LEDs). It’s available in either a clear or red-colored lens.

Brake-Tail-Turn Surface Mounts feature multiple modes, such as steady-on dim red, brake light mode, tail light mode, and turn functionality. They’re also engineered with military-grade aluminum, as well as anti-yellowing and anti-cracking clear-coated polycarbonate lenses.

What’s in the Box:

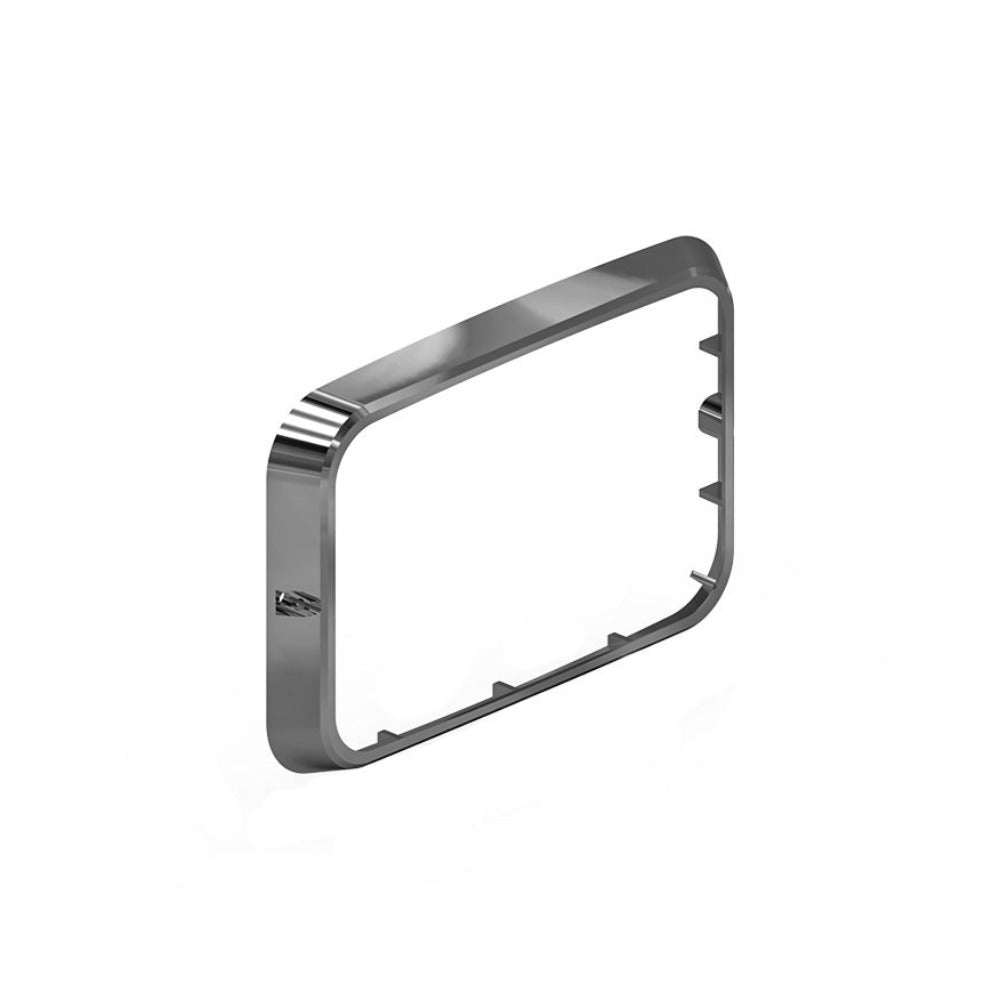

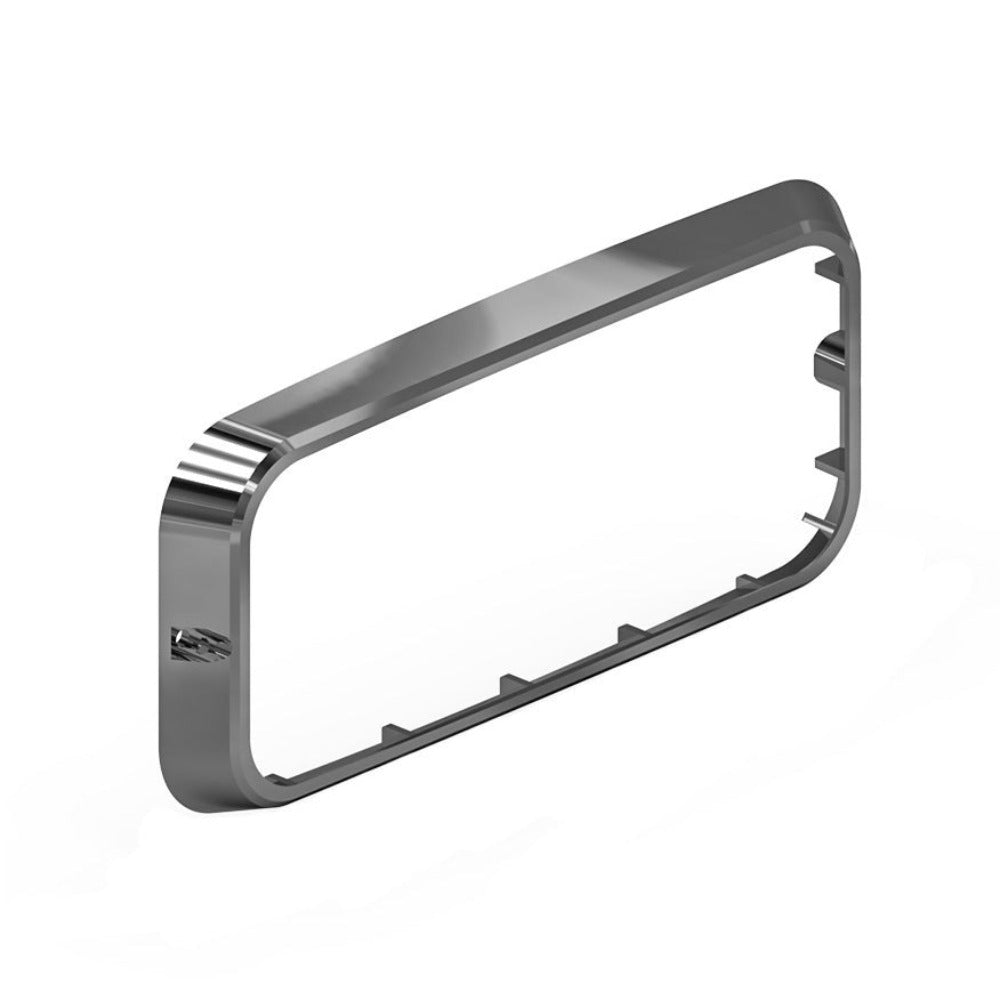

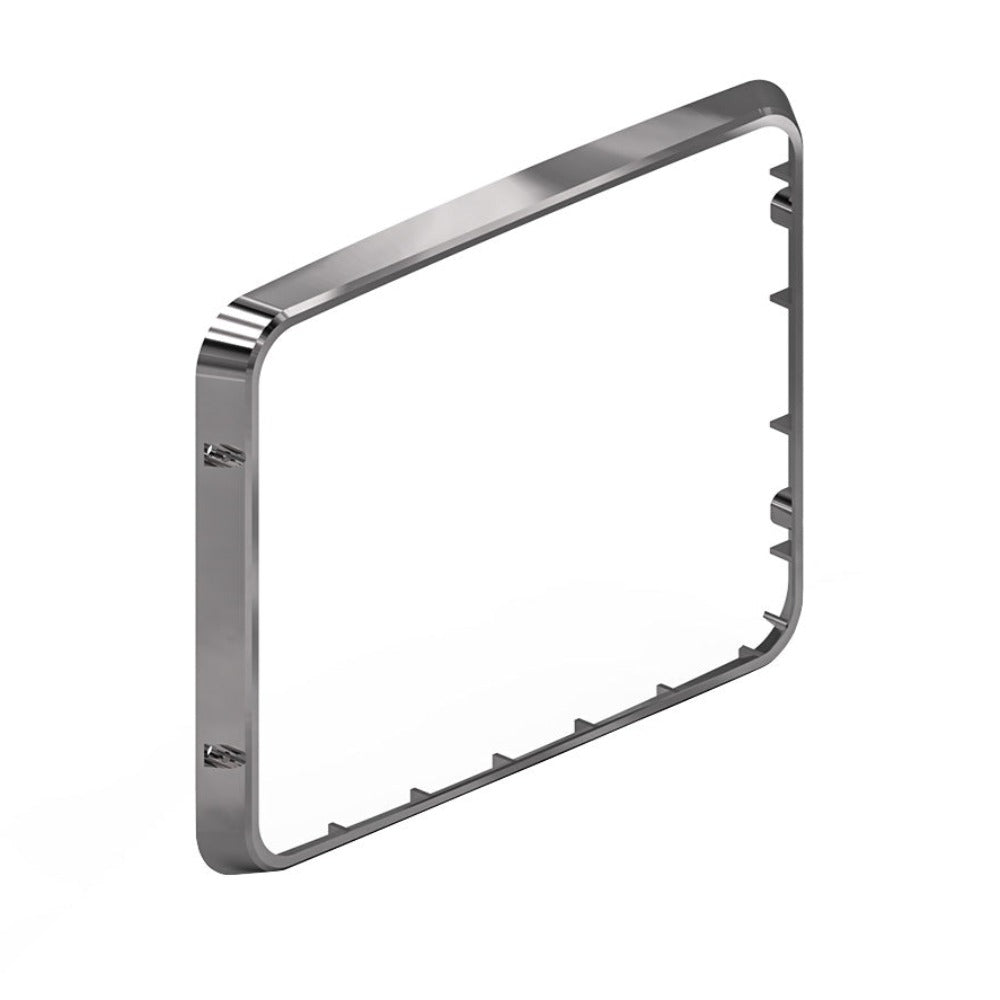

  • 1x Brake-Tail-Turn chrome bezel (available in 9x7, 7x3, or 6x4)

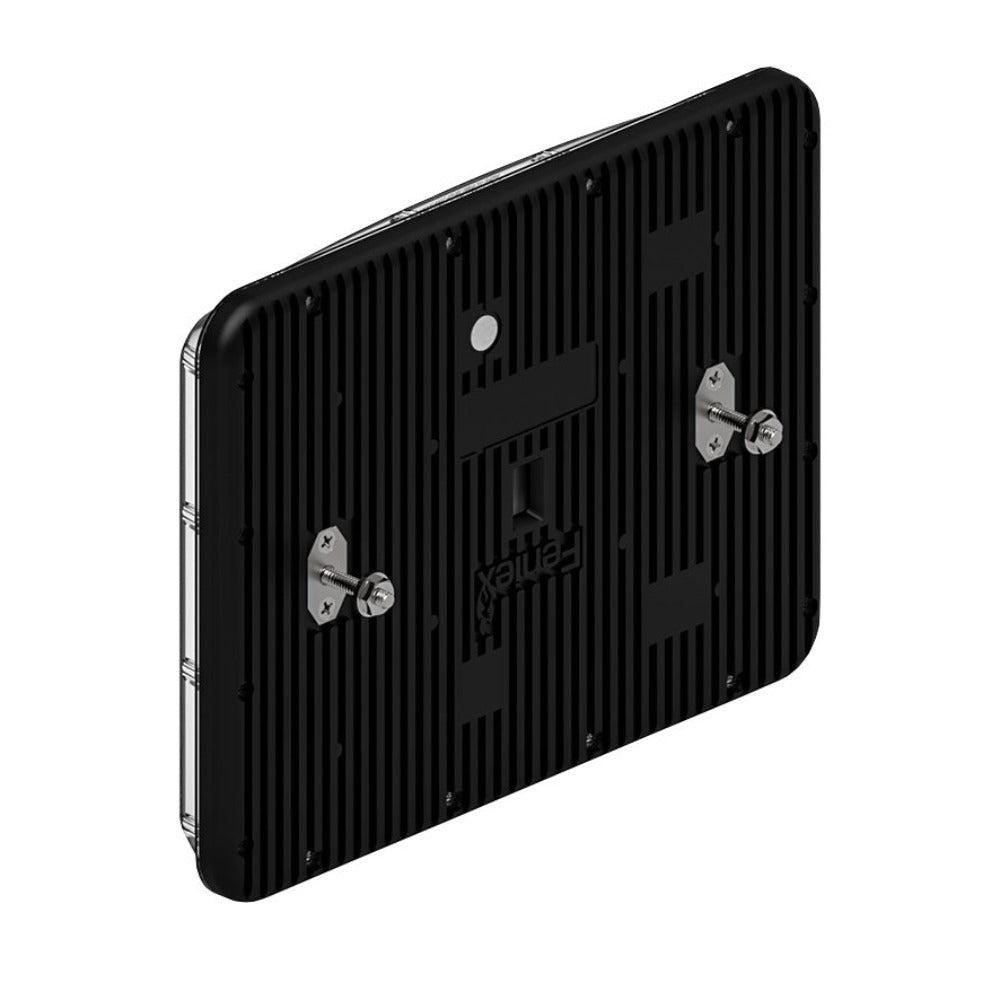

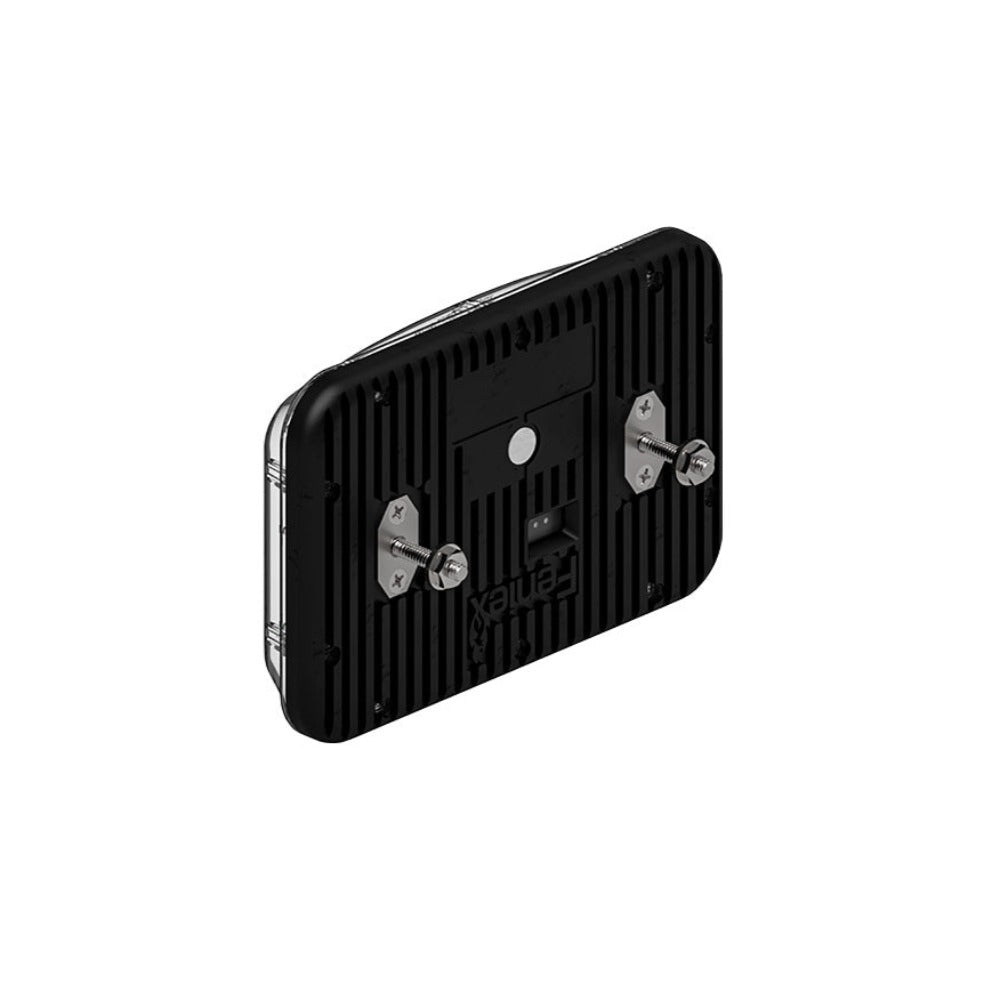

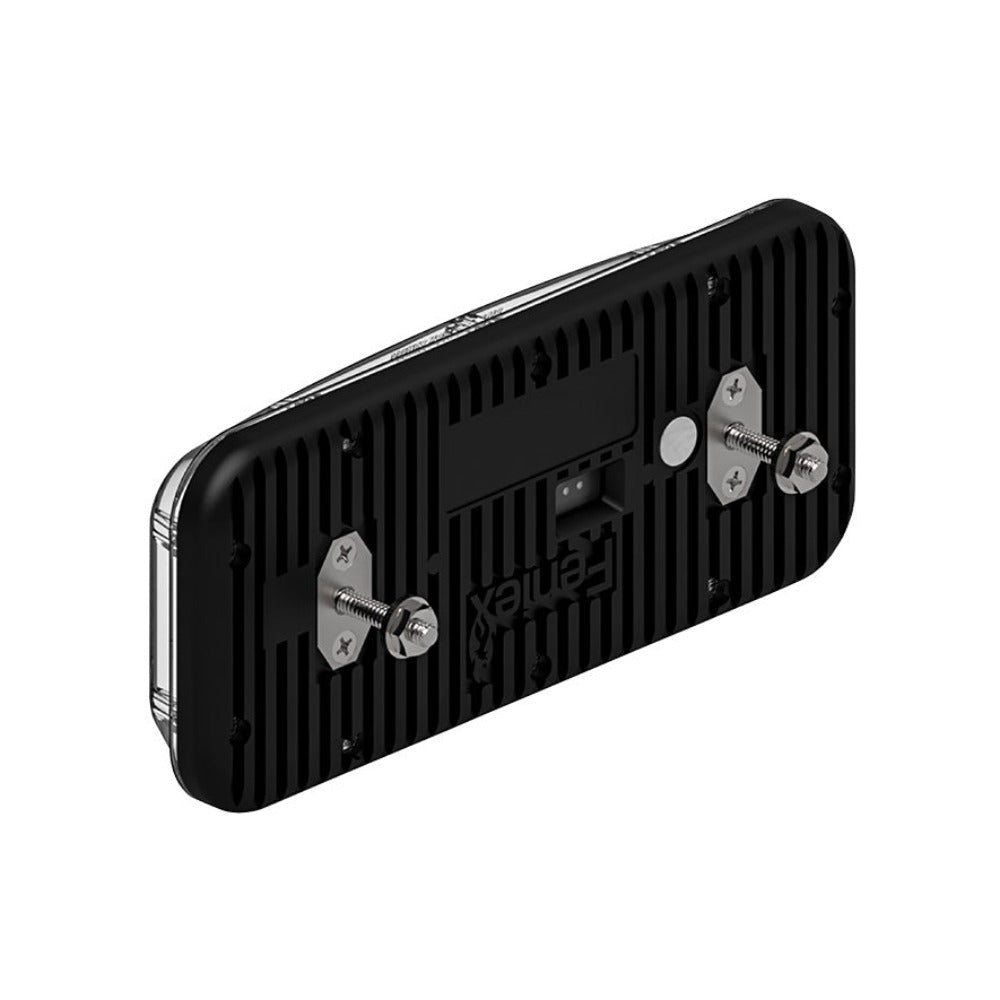

  • 2x Back bracket mounts
  • 1x Mounting kit

Tech Specs:

  • Dimensions:
    • Lux 9x7: 7.75" x 10" x 1"
    • Lux 7x3: 3.75" x 8" x 1"
    • Lux 6x4: 4.75" x 7.05" x 1"
  • Voltage: 10–18 VDC
  • Power: 1.5A

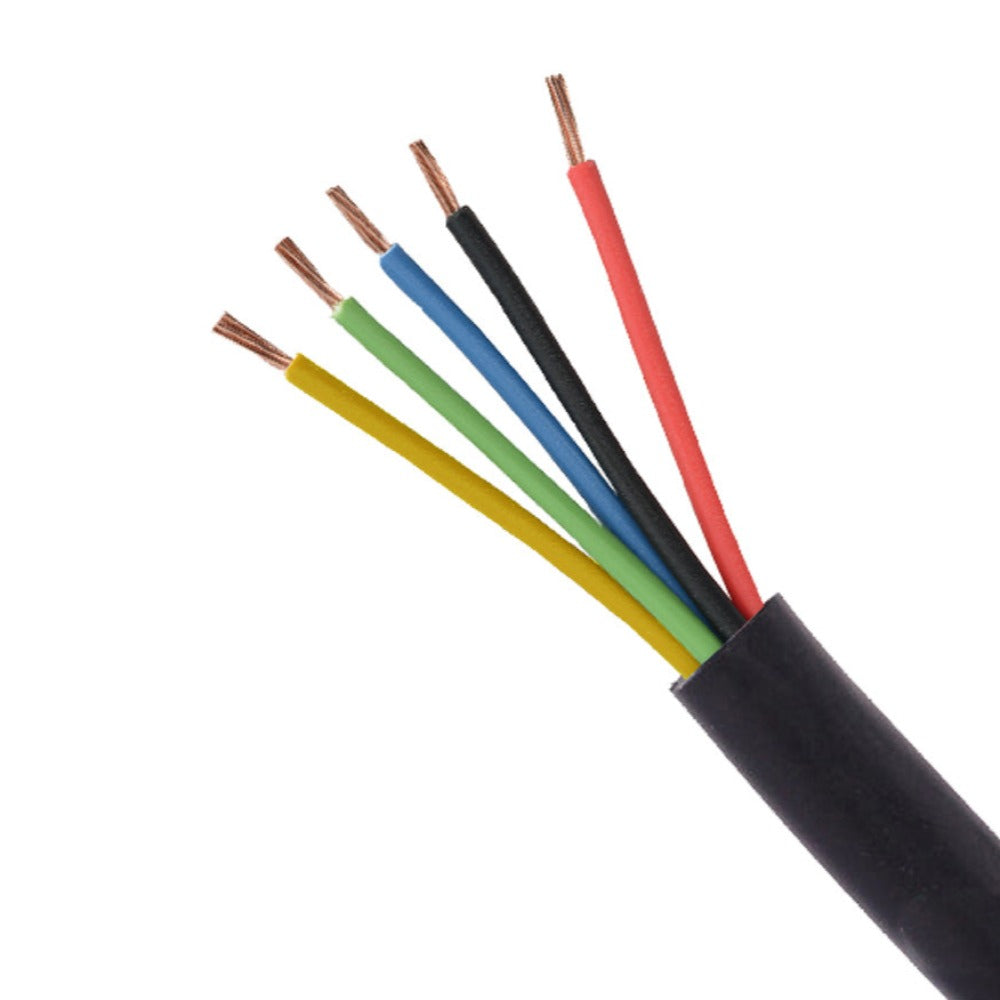

  • Cable harness length: 10"
  • 14 flash patterns
  • Available modes: Turn Light Mode, Tail Light mode, Brake Mode, and 100% and 10% Dim
  • Front and rear mounting options
  • SAE J1113 certified
  • Five year warranty
  • Made in the USA



Download Feniex Brake-Tail-Turn Lux Surface Mount InstructionsDownload Feniex Brake-Tail-Turn Lux Cut Sheet
